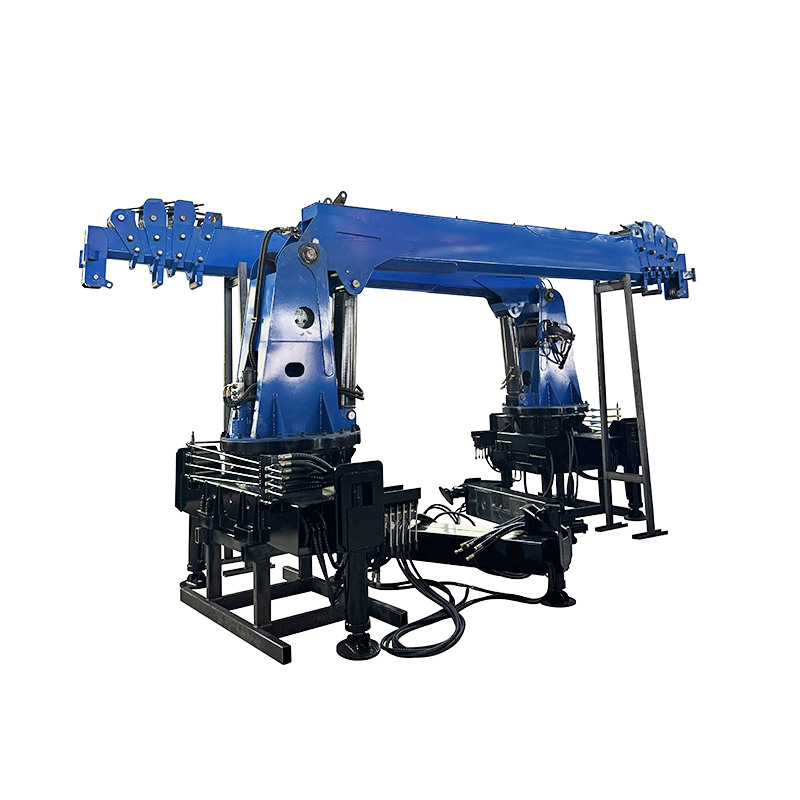

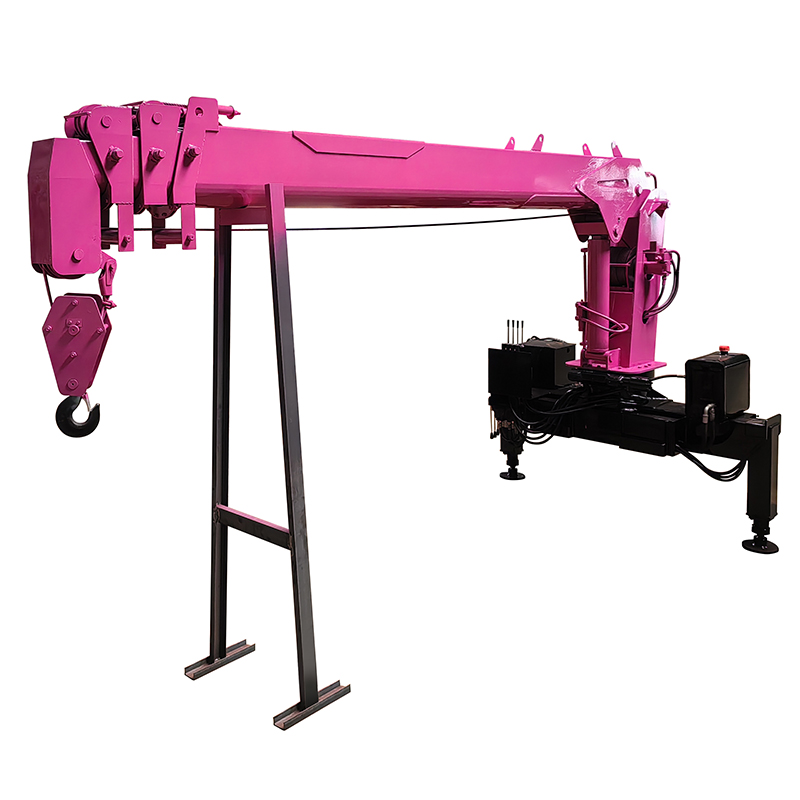

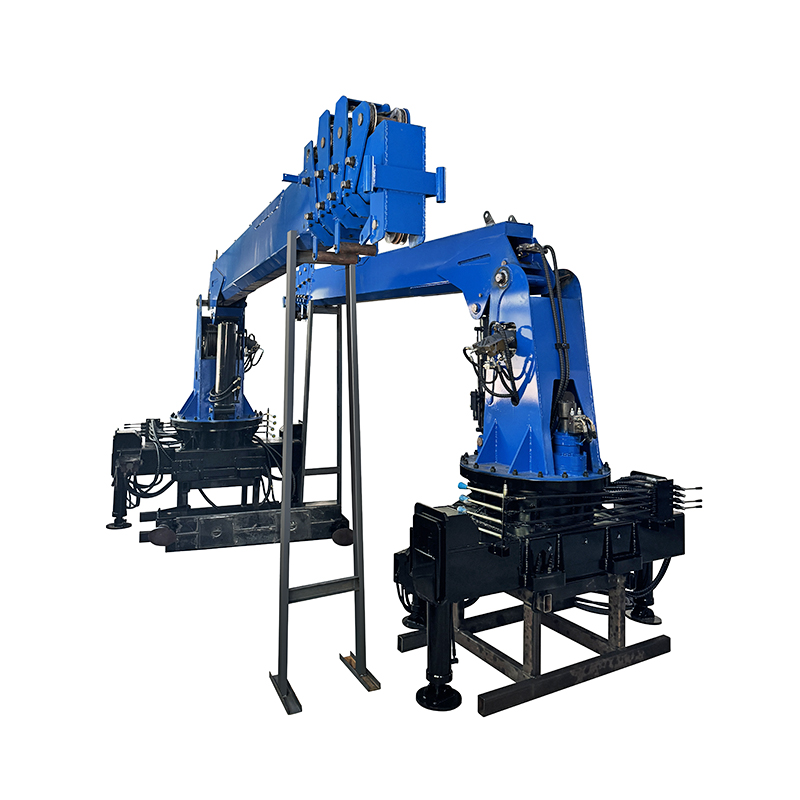

Telescopic Boom Truck Mounted Crane
This telescopic boom crane is a compact yet powerful lifting solution, designed for integration onto truck chassis. Its key feature is the multi-stage telescopic boom, enabling significant reach and height in a compact retracted size. Constructed from high-strength steel, it ensures reliable performance under various load conditions. The precise hydraulic control system allows for smooth and accurate load placement. Optional accessories, such as hydraulic augers or winches, further enhance its versatility. Ideal for construction, logistics, and utility services, this crane offers an efficient and self-contained mobile lifting platform for a wide range of job sites.
| 吊机型号 | 3T | 5T | 6T | 8T | 10T | 12T | 14T | 16T |
| Crane model | ||||||||
| 吊臂 | 3m*3-section boom | 3.5m*4-section boom | 3.5m*5-section boom | 4m*4-section boom | 4.5m*5-section boom | 5m*4-section boom | 5m*5-section boom | 5.5m*5-section boom |
| Boom | ||||||||
| 卷扬机 | 3T | 5T | 6T | 8T | 10T | 12T | 14T | 16T |
| Winch | ||||||||
| 动力 | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Power | ||||||||
| 操作方式 | Operations below | Operations below | Operations below | Operations below | Seat operation | Seat operation | Seat operation | Seat operation |
| Operation method | ||||||||
| 转盘尺寸 | 14 inches | 17 inches | 17 inches | 800mm | 900mm | 1000mm | 1200mm | 1200mm Thickened |
| Turntable | ||||||||
| 旋转角度 | 360°continuous rotation | 360°continuous rotation | 360°continuous rotation | 360°continuous rotation | 360°continuous rotation | 360°continuous rotation | 360°continuous rotation | 360°continuous rotation |
| Rotation Angle | ||||||||
| 液压支腿 | Two hydraulic outriggers | Two hydraulic outriggers | Two hydraulic outriggers | Two hydraulic outriggers | Two hydraulic outriggers | Four hydraulic outriggers | Four hydraulic outriggers | Four hydraulic outriggers |
| Hydraulic outriggers |
