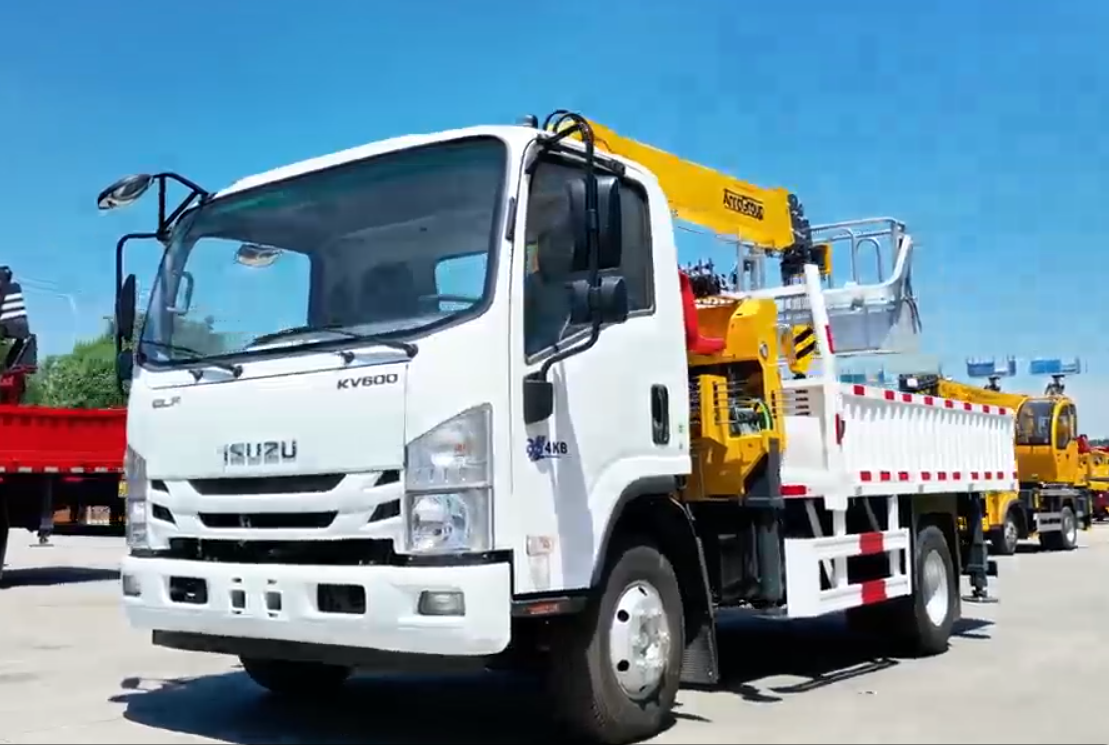

ISUZU KV600 Truck-Mounted Crane: 6.3-Ton Lifting Capacity
Discover the ISUZU Truck-Mounted Crane, a versatile solution designed for demanding lifting and logistics applications. This robust vehicle is built on a reliable ISUZU chassis, powered by a durable 4KB1-TCG60 engine and an Isuzu MSB 5-speed manual transmission for dependable performance. The practical 120L fuel tank and 7.50R16 tires ensure extended operational range and stability, supported by a 3365mm wheelbase for excellent maneuverability.
he core of this truck is its powerful crane, capable of a 6300kg maximum lift. The boom comprises five 3.5-meter sections, engineered for precise positioning. It also features a cargo box with a 4500kg load capacity, adding significant utility. For aerial work, a 14.5-meter aluminum alloy aerial work platform is included, with a 200kg rated load. Color and logo customization are available to match your corporate identity.
| ☑ ISUZU | |
| ☑ Cabin | air-conditioning, central locking electric doors and windows |
| ☑Engine Model | 4KB1-TCG60 |
| ☑Transmission model | Isuzu MSB five-speed box |
| ☑Fuel tank | Iron 120L |
| ☑Tyre specification | 7.50R16 |
| ☑Wheelbase | 3365mm |
| Upper Body | |
| ☑ Max operating height | 14.5m |
| ☑Working flatform Rated loading Capacity | 200kg |
| ☑ AWP material | Aluminum alloy |
| ☑Cargo box load | 4500kg |
| ☑ Maximum lifting weight | 6300kg |
| ☑ Boom | 3.5m*5sections |
| ☑ A basket for free | |
| Color and logo could be customized as your requested. |
