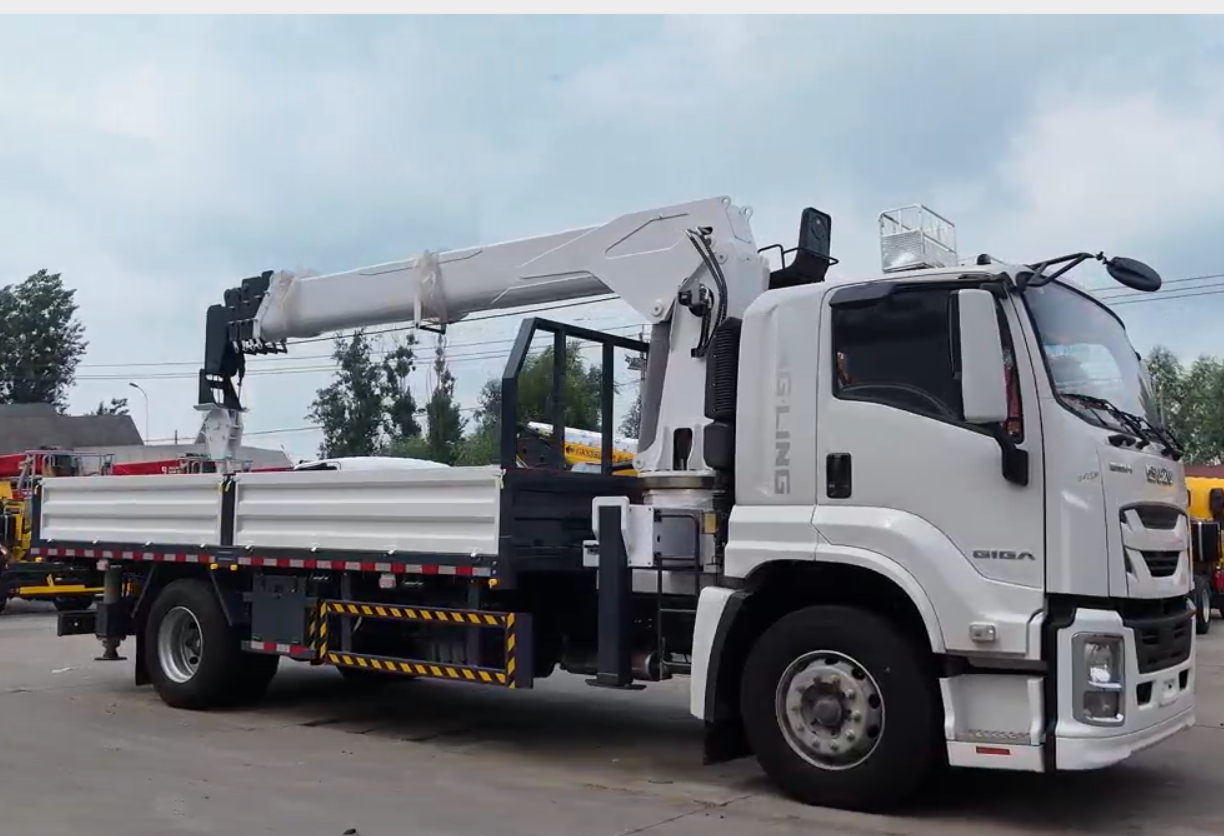

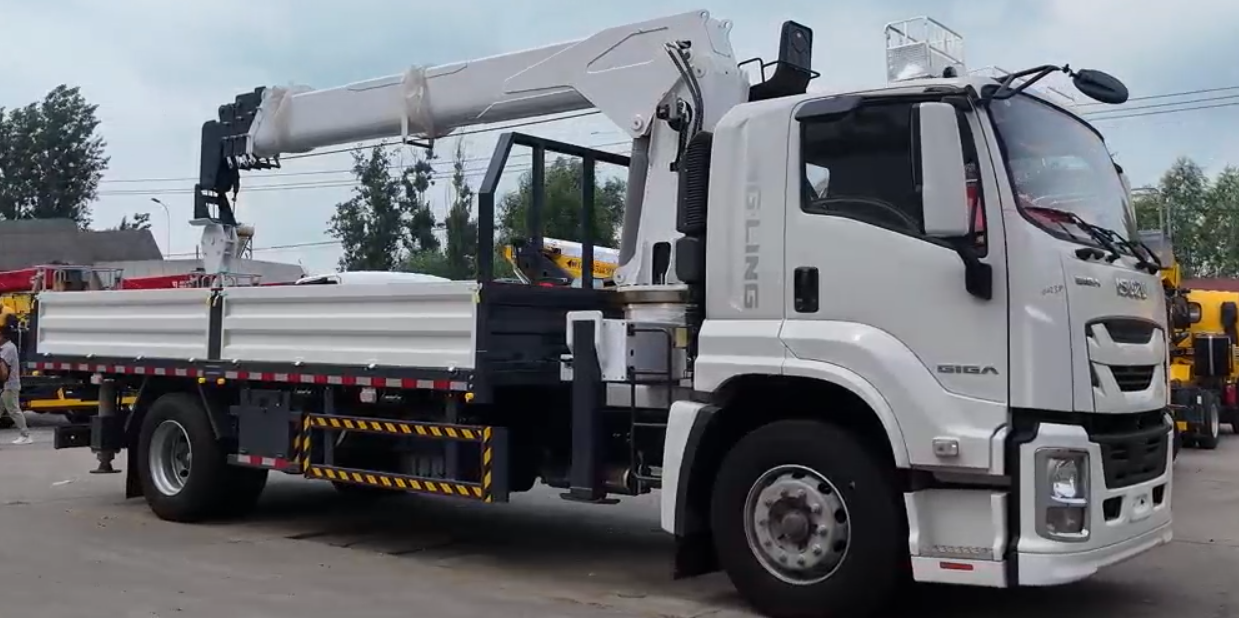

ISUZU Truck-Mounted Crane: 10-Ton Lifting Capacity
Model: Isuzu Juka 4x2 . The "4x2" means it's a two-wheel-drive (4-wheel) truck.
Cab: A comfortable and well-equipped cabin for the driver, featuring air conditioning, power steering, electric windows, central locking, and a multifunction steering wheel.
Fuel Tank: A large 200-litre steel tank, suitable for long work cycles.
Wheelbase: 5000 mm (5 meters). This provides a stable platform for the crane and determines the truck's turning circle and body length.
Gross Vehicle Weight (GVW): 18,000 kg. This is the maximum total weight the vehicle is legally allowed to weigh (truck + crane + cargo).
Axles: A 6.5-tonne front axle and a heavy-duty 11.5-tonne rear axle to support the crane's lifting loads.
2. Drivetrain (Engine & Transmission)
Engine: A 4HK1-TCG60 diesel engine. This is a modern, 5.2-litre, turbocharged-intercooled engine producing 205 horsepower. It is known for its reliability and torque.
Gearbox: An Isuzu MLD-6Q manual transmission. This is a 6-speed gearbox.
Tyres: 295/80R22.5 18PR. These are large, commercial truck tyres. The "18PR" (Ply Rating) indicates a very strong tyre capable of handling heavy loads.
3. Crane Specifications
This is a significant piece of lifting equipment mounted on the truck bed.

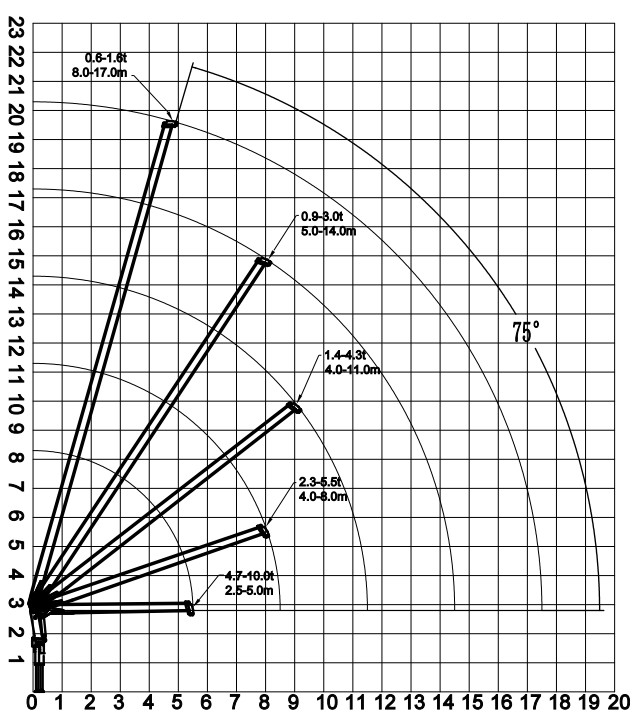

Max. Lifting Height: 20 meters. This is the maximum reach from the ground.
Max. Lifting Weight: 10,000 kg (10 tonnes). This is the maximum weight it can lift, typically at a shorter boom length and closer to the truck.
Boom: Consists of 5 sections, each 5 meters long, giving a maximum main boom length of 25 meters (likely including the telescopic extension). The boom extends via a reliable double-cylinder system.
Max. Elevation Angle: 0-75 degrees. It can work from horizontal (0°) all the way up to a steep 75° angle.
Specifications
(1) Vehicle series Isuzu Juka 4*2
(2) Chassis model QL1180JQFRY (3) Cab Air conditioning with power steering, electric door control, central locking, multifunction steering wheel (4) Engine model 4HK1-TCG60 5.2 litre 205 horsepower (5) Gearbox model Isuzu MLD-6Q (6) Fuel tank 200-litre steel (7) Tyre size 295/80R22.5 18PR (8) Front axle 6.5T, rear axle 11.5T (9) Wheelbase 5000m (10) Gross vehicle weight 18000kg Max. lifting height 20m Max. lifting weight 10000kg Boom 5m x 5 sections Boom extension method By double cylinders Max. elevation angle 0-75°
Summary and Typical Use
This vehicle is a powerful and capable mobile crane on a reliable Isuzu commercial truck chassis. It is designed for medium-duty lifting applications such as:
Loading and unloading heavy machinery or construction materials.
Logistics and freight handling.
Infrastructure and utility work.
Equipment rental services.
The combination of a comfortable cab, a powerful 205 hp engine, and a robust 10-tonne crane with a 20-meter reach makes it a versatile and efficient tool for various industries.
