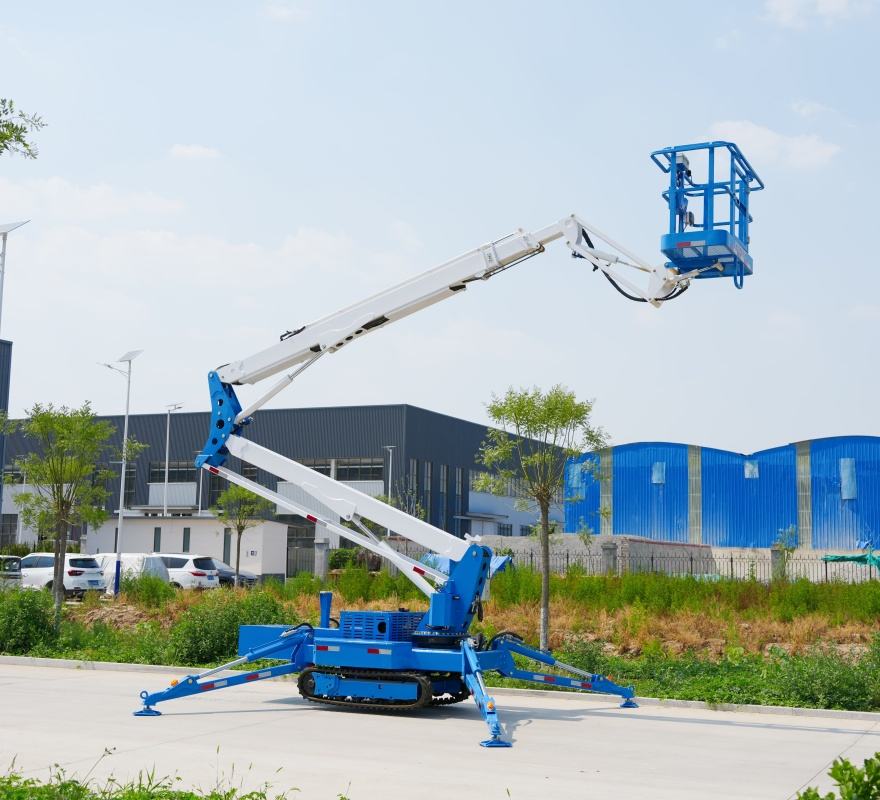

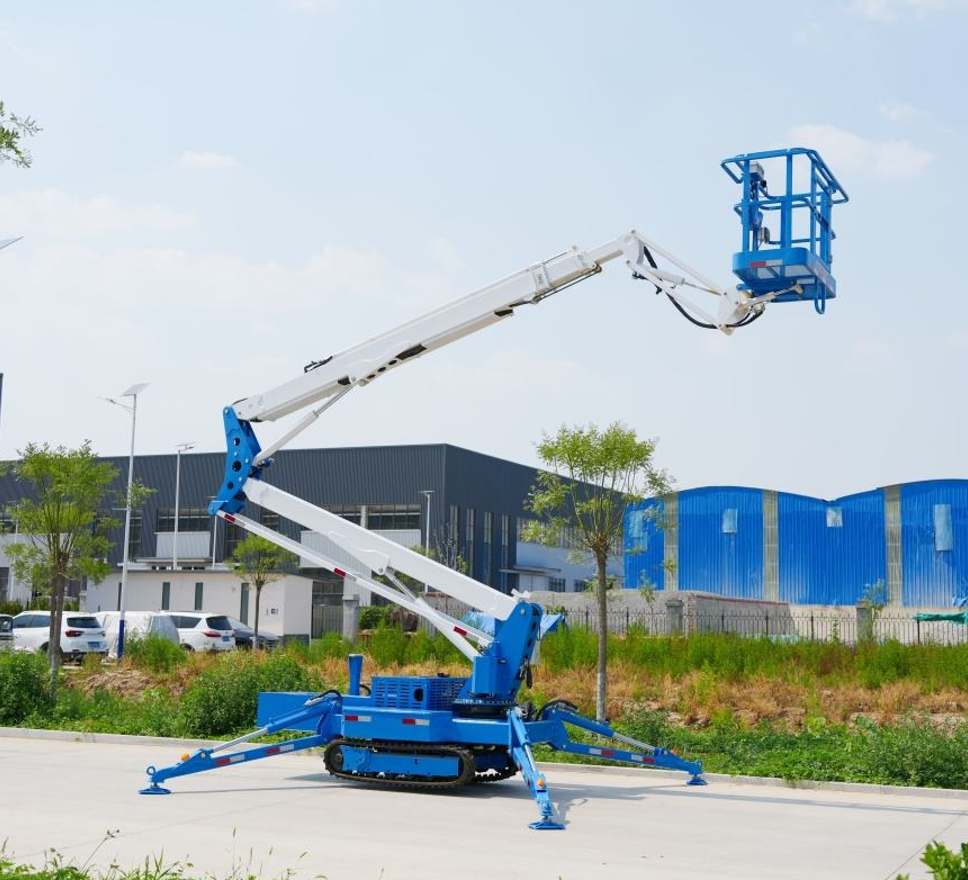

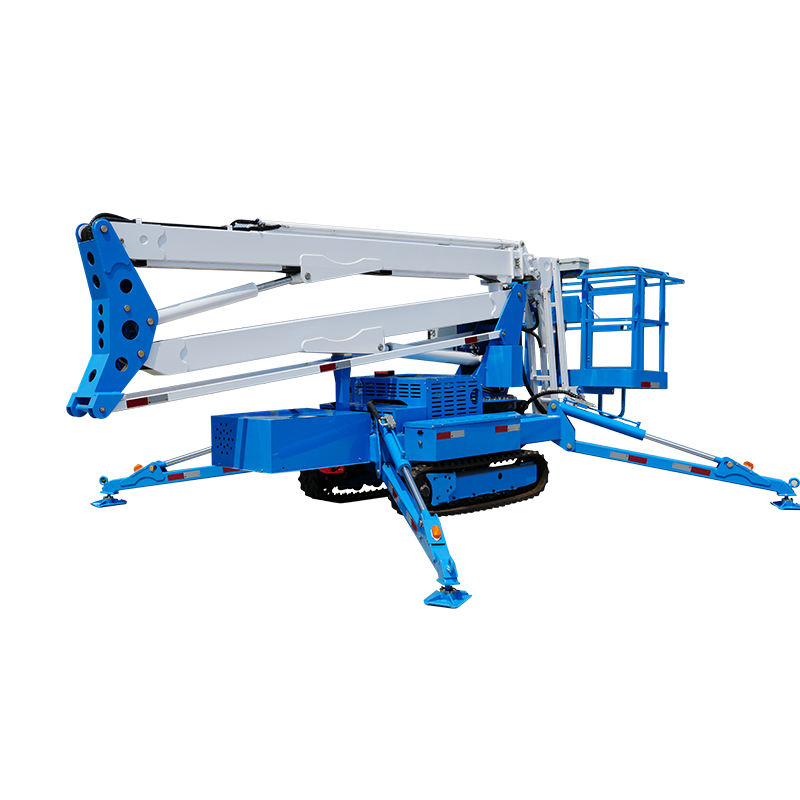

Product Overview: Compact Crawler Crane
The Compact Crawler Crane represents a specialized lifting solution engineered for challenging environments where space constraints and terrain accessibility are critical factors. With a maximum working height of 24 meters and a substantial load capacity of 200 kg, this equipment delivers robust p erformance in confined operational areas.
Specifications
| MODEL | LT8S | LT10S | LT12S | LT14S | LT16S |
| Max Working Height | 10m | 12m | 14m | 15.7m | 17.7m |
| Max Platform Height | 8m | 10m | 12m | 13.7m | 15.7m |
| Max Working Radius | 5m | 5.5m | 6.2m | 7.6m | 8.1m |
| Platform Dimension (LxWxH) | 0.9x0.7x1.1m | 0.9x0.7x1.1m | 0.9x0.7x1.1m | 1.1x0.7x1.1m | 1.1x0.7x1.1m |
| Machine Dimension (LxWxH) | 4.7x0.75x1.9m | 5x0.75x1.9m | 5.3x0.75x1.9m | 4.8x0.85x2.0m | 5.3x0.85x2.0m |
| Machine Weight | 1720kg | 1790kg | 1880kg | 1900kg | 2200kg |
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg |
| Driving Speed | 1.5km/h | 1.5km/h | 1.5km/h | 3km/h | 3km/h |
| Driving Gradeability | 25% | 25% | 25% | 25% | 25% |
| Pump Motor | 4.5kw | 4.5kw | 4.5kw | 4.5kw | 4.5kw |
power configuration offers gasoline, electric, and diesel options to meet diverse worksite requirements. The compact design features a 2500 mm wheelbase and 0.3 m ground clearance, ensuring excellent maneuverability through narrow passages while maintaining operational stability.
The telescopic boom with optional fly jib enables precise load positioning in challenging scenarios. Built with durability and reliability as core principles, this crane is ideally suited for construction projects, facility maintenance, and specialized industrial applications requiring efficient elevated access solutions.

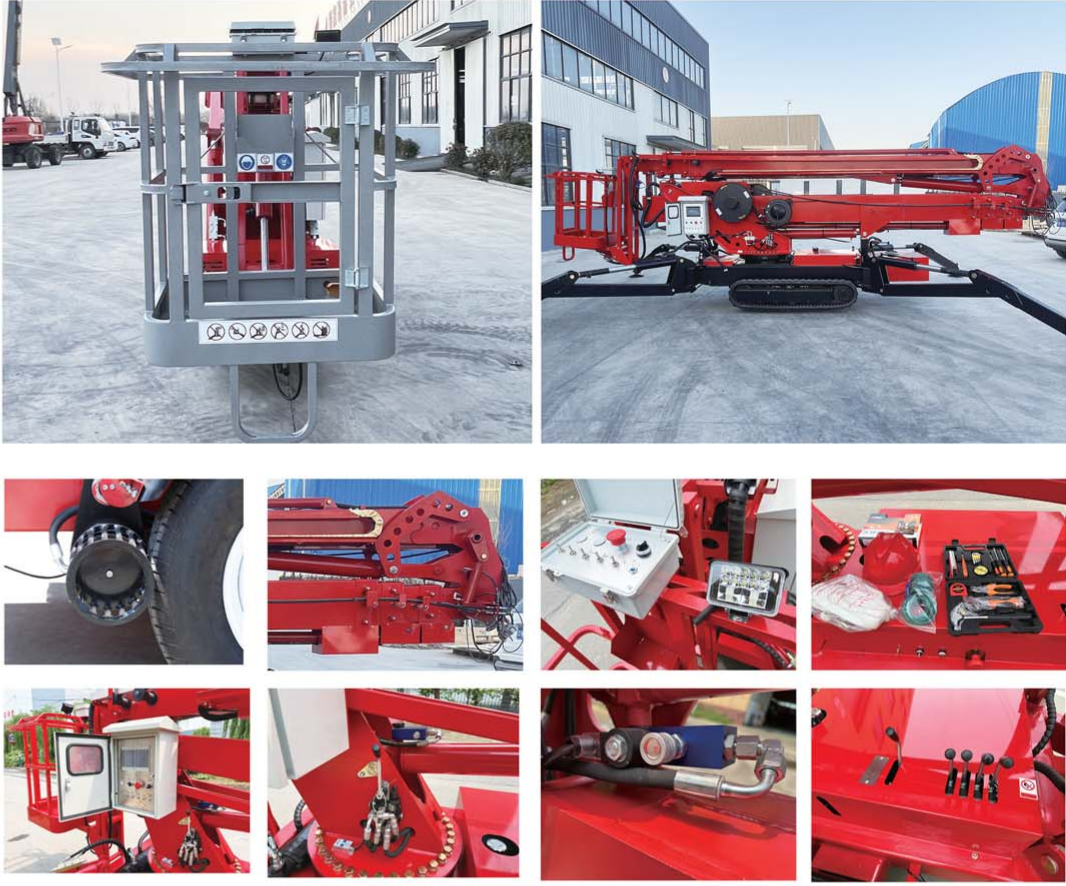

Product Details:
