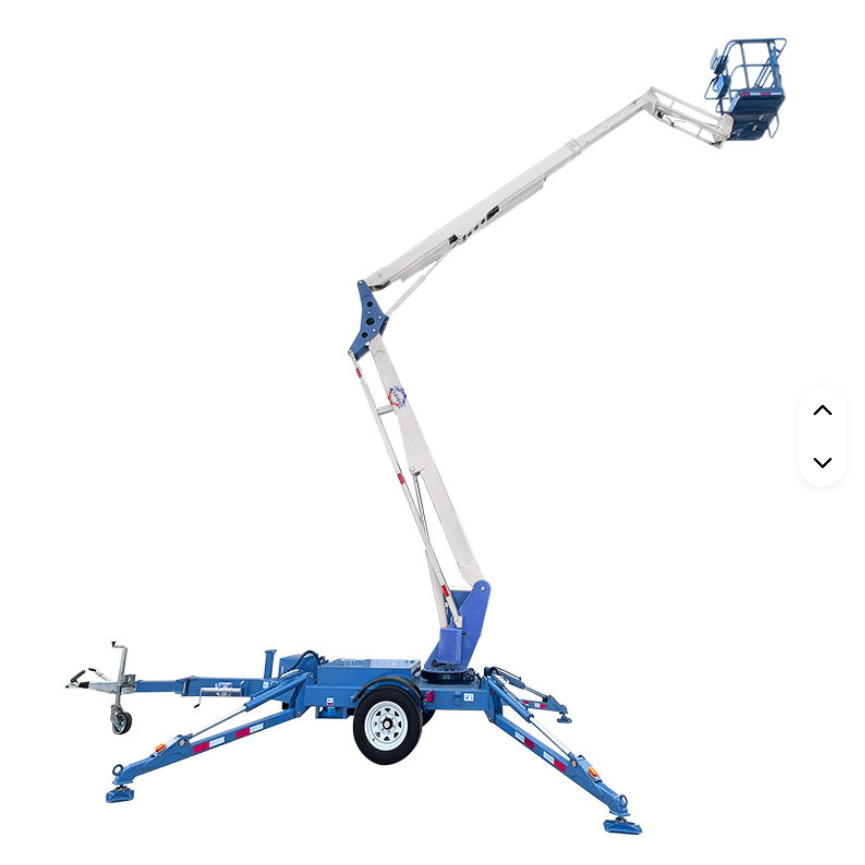

Towable Trailer Boom Lift 2 wheel
The Towable Trailer Boom Lift is a highly mobile and robust access solution, engineered for professionals requiring reliable performance across diverse job sites. It features a practical lifting height range of 10 to 20 meters, extending to a working height of 12 to 20 meters, and is built to support a payload of 200 kilograms.
Picture Specifications
Designed for exceptional on-site stability, the unit incorporates hydraulic outriggers and an automatic leveling system, which actively secure the platform to create a safe and stable base for operations. Its towable design ensures seamless transportation behind a standard vehicle, facilitating easy deployment without the requirement for a commercial driving license.
This combination of key features makes the Cathaylift Boom Lift an indispensable asset for a wide array of applications, from construction and facility maintenance to industrial servicing, significantly enhancing both operational efficiency and workplace safety.
Specifications
| Model | T08 | T10 | T12 | T14 | T16 |
| Max Working Height | 10m | 12m | 14m | 16m | 18m |
| Max Platform Height | 8m | 10m | 12m | 14m | 16m |

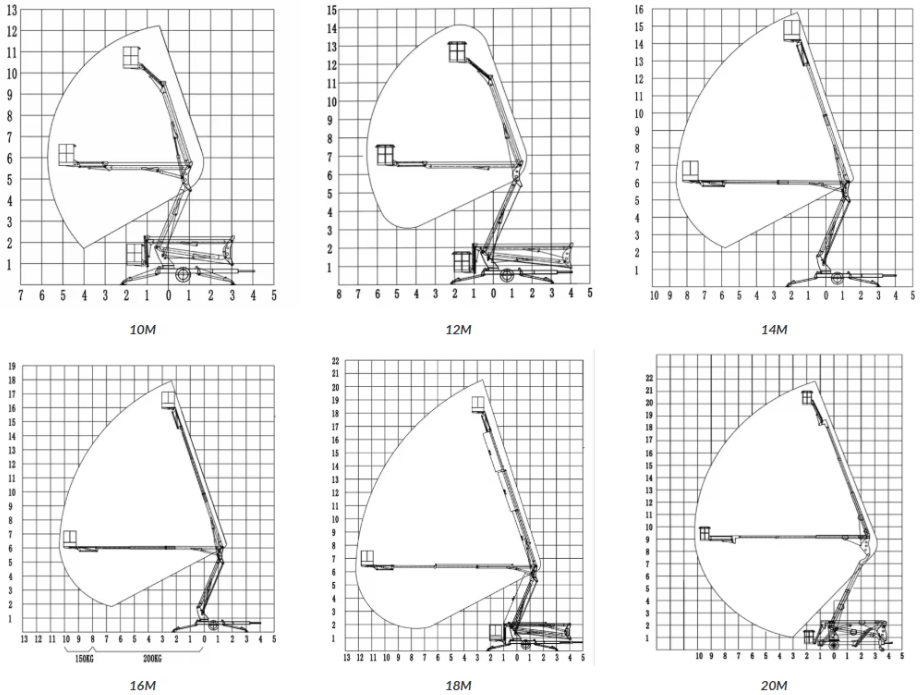

| Max Working Radius | 5m | 5.8m | 7.5m | 8.5m | 10.5m |
| Platform Dimensions (L*W) | 700/900/1100mm | 700/900/1100mm | 700/900/1100mm | 700/900/1100mm | 700/900/1100mm |
| Machine Weight | 1600kg | 1600kg | 1800kg | 2500kg | 2800kg |
| Load Capacity | 200kg | 200kg | 200kg | 200kg | 200kg |
| Platform Rotation | ±80° | ±80° | ±80° | ±80° | ±80° |
| Jib Rotation | ±70° | ±70° | ±70° | ±70° | ±70° |
| Turntable Rotation | 360° | 360° | 360° | 360° | 360° |
| Drive Speed (Stowed) | 70km/h | 70km/h | 70km/h | 70km/h | 70km/h |
| Gradeability | 25% | 25% | 25% | 25% | 25% |
| Max Working Angle | 9° | 9° | 9° | 9° | 9° |
| Battery Power | 24V/192Ah | 24V/192Ah | 24V/192Ah | 24V/192Ah | 24V/192Ah |
| Pump Motor Power | 4.5kw | 4.5kw | 4.5kw | 4.5kw | 4.5kw |
| Control Voltage | 12V | 12V | 12V | 12V | 12V |
| Power Plus Generator (Optional) | 2kw | 2kw | 2kw | 2kw | 2kw |
| Optional | Remote control | ||||
| Optional | Assisted walking | ||||
| Optional | Gasoline engine/DieselEngine/LithiumBattery/AC power | ||||

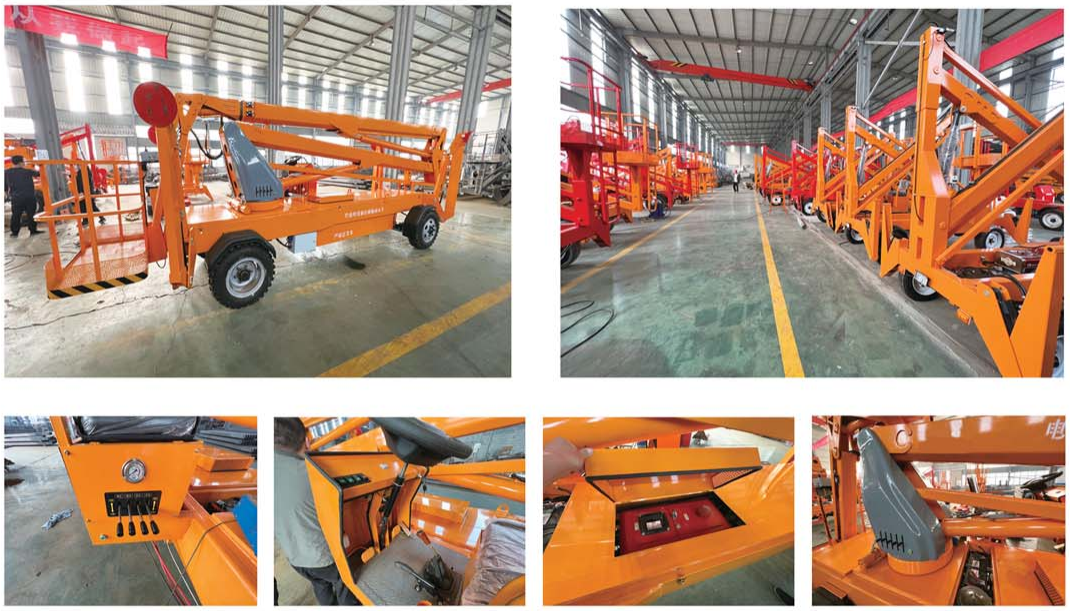

Product Details:
