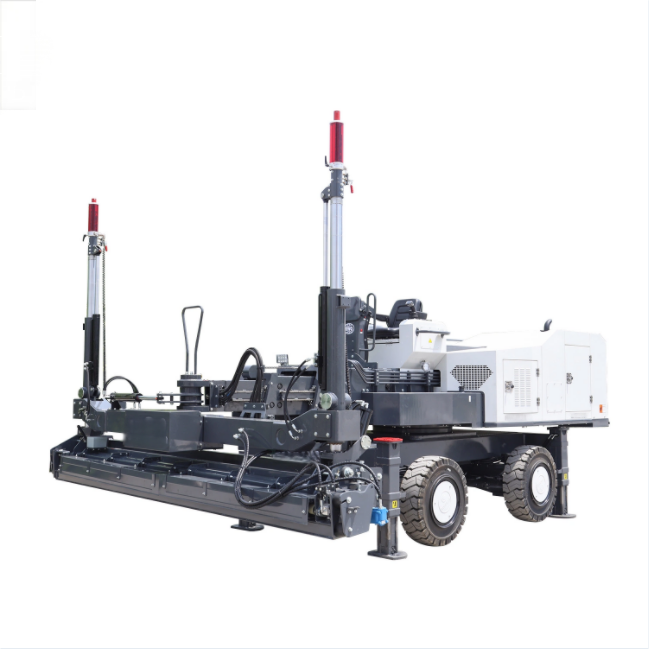

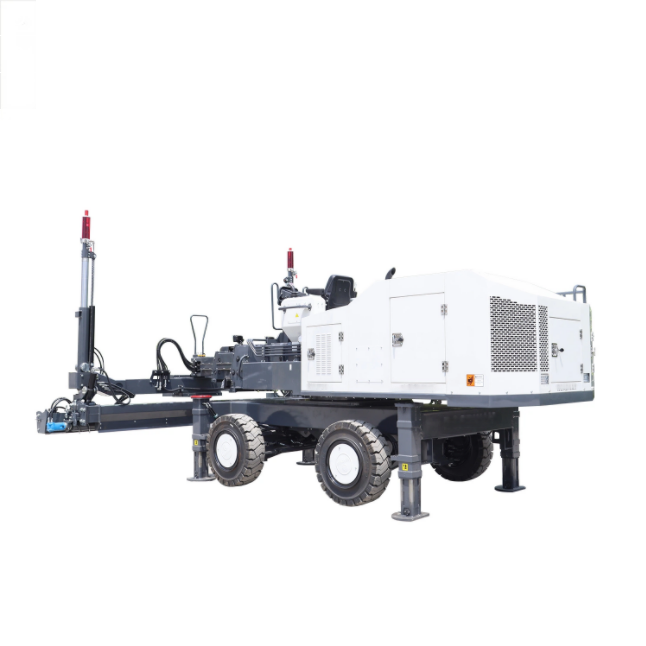

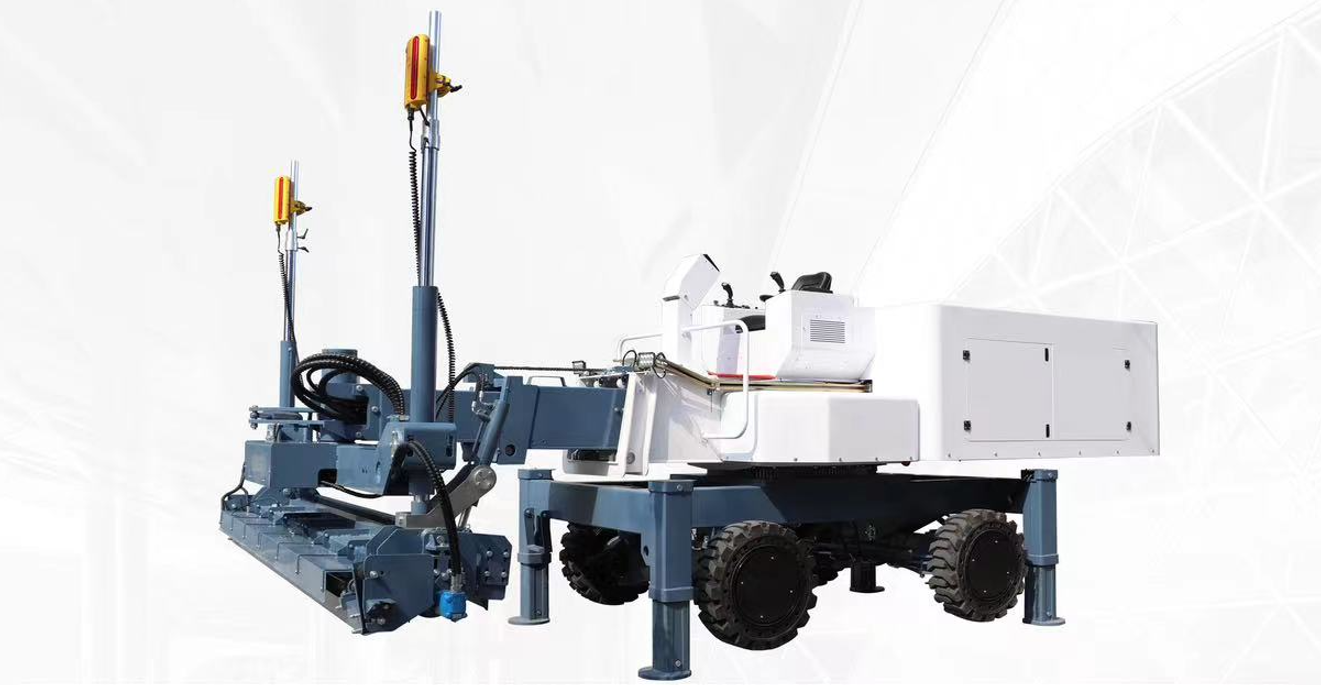

JB60-40 concrete leveling equipment，Concrete Laser Screed

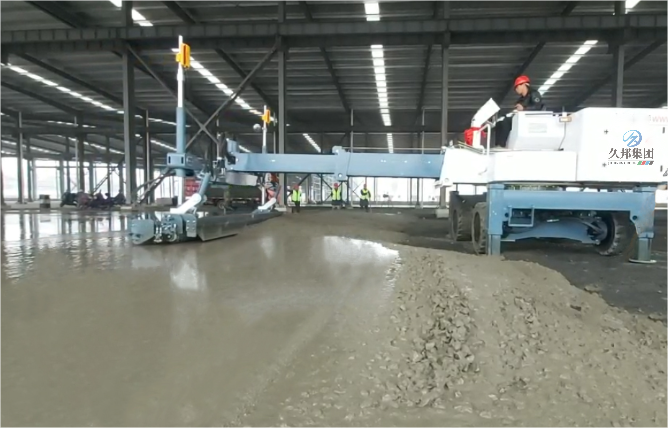

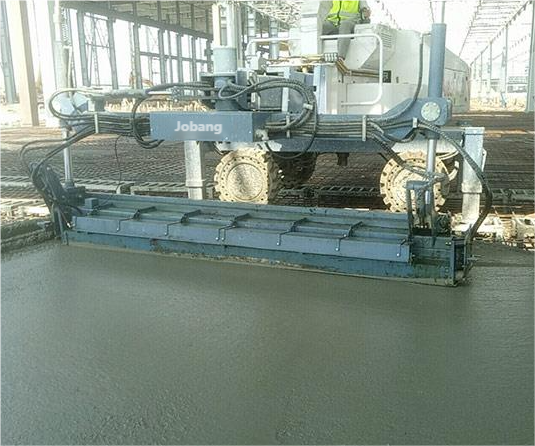

The JB60-40 Laser Screed Machine redefines high-volume concrete placement with an intelligent design that prioritizes precision, accessibility, and efficiency. Its core leveling system features a hydraulically driven auger that cleanly cuts the concrete to the exact specified grade. An integrated dual-auger and offset scraper assembly then efficiently channels surplus material to the right side of the machine. There, an extended curved baffle works in tandem to manage this excess, flattening and recirculating it back into the primary work area. This sophisticated material handling system drastically minimizes the required overlap width between passes, enhancing both the speed and quality of the finish.
| Power configuration | Engine model | Yanmar 4TNV98T |
| Fuel | Diesel | |
| Engine power | 63.9KW/86hp | |
| Fuel volume | 140L (Available working hours: 10 - 15 hours) | |
| Hydraulic oil volume | 200L | |
| Hydraulic system | Danfoss | |
| Laser system | Laser emitter | Swiss Leica transmitter |
| Laser receiver | Swiss Leica receiver | |
| Laser system control effect | Flat, sloping, double sloping | |
| Laser system control mode | Microcomputer laser scanning | |
| Leveling system | Paving method | Hydraulic auger compaction and paving |
| Auger power | Hydraulic motor | |

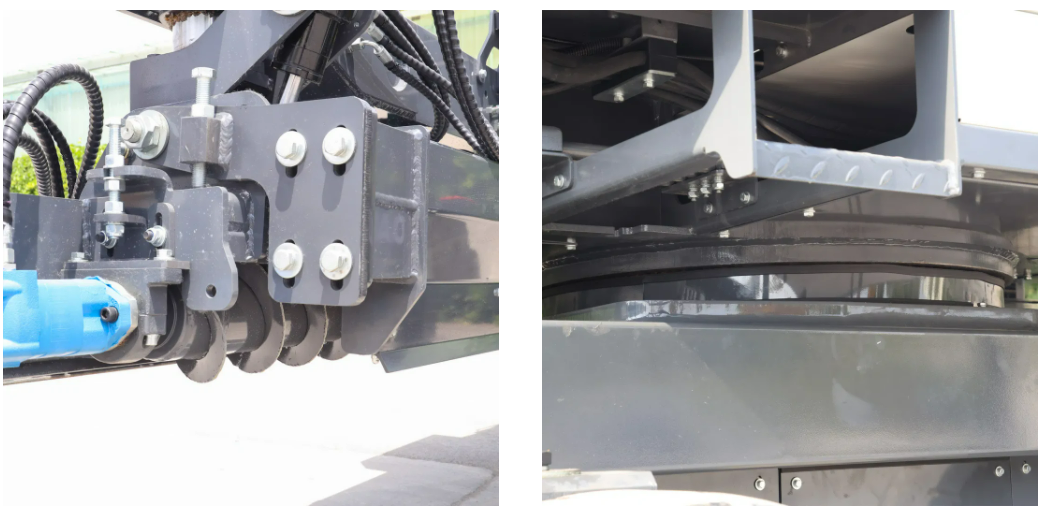

| Auger advantage | Flip up and down,easy cleaning, and interchange left and right. | |
| Vibration mode | Hydraulic vibration | |
| Excitation force | 2000N | |
| Boom extension length | 6000mm | |
| Vibration plate width | 4000mm | |
| Leveling thickness | 100-500mm | |
| Walking system | Walking speed | 4-8km/h 24㎡/min |
| Walking drive form | Hydraulic four-wheel drive | |
| Outrigger | One click four leg self leveling | |
| Steering mode | Front wheel, four wheel, crab driving | |
| Walking tire | Solid anti slip and anti puncture tires | |
| Cleaning machine flow rate | 15L/min | |

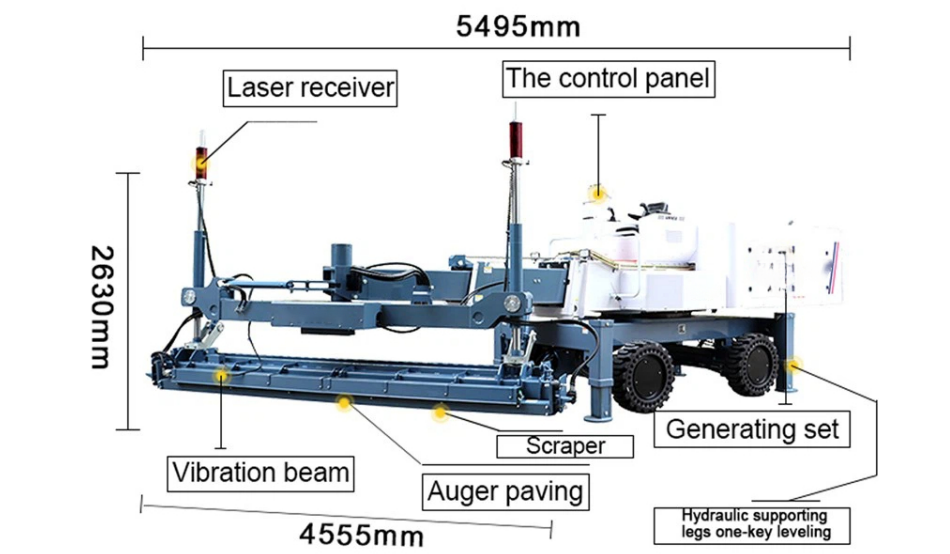

| Dimension | Body size | 5495*4555*2630mm |
| Weight | 9000kg |
Beyond the screeding head, the machine is engineered for real-world site obstacles. Its telescopic boom provides the ability to reach over and "step over" embedded elements like rebar cages, mesh, drain pipes, and conduit without the need for manual repositioning. This is complemented by a robust hydraulic system that provides precise, active control over the auger's elevation, ensuring a consistently flat base surface. This dynamic control delivers superior flatness even when working with challenging low-slump concrete mixes.
Designed for practicality, the JB60-40 maintains a transport-friendly profile, allowing for easy relocation on a standard flatbed or tractor-trailer, ensuring it is ready for the next project with minimal downtime.
