Concrete Laser Screed

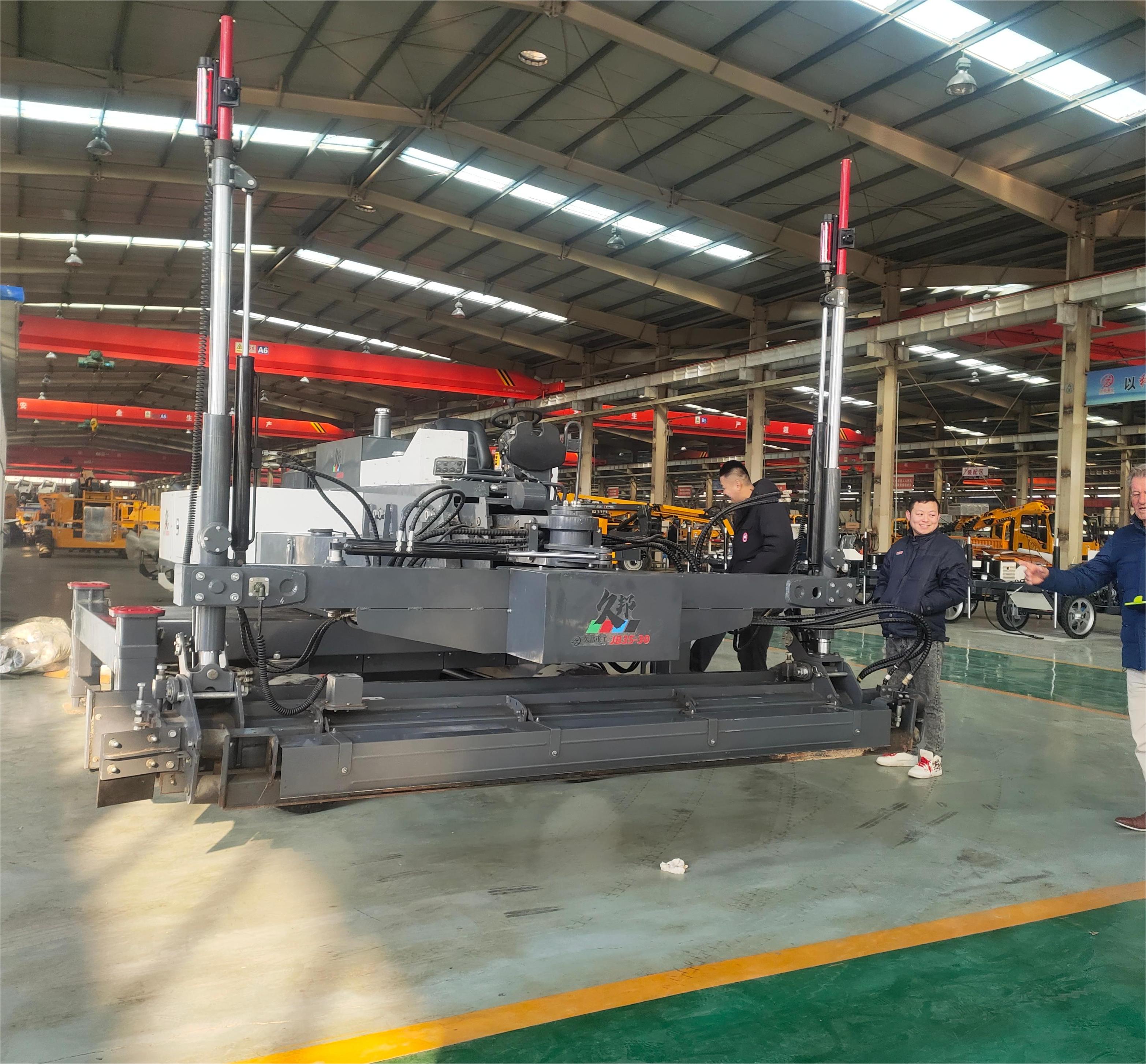

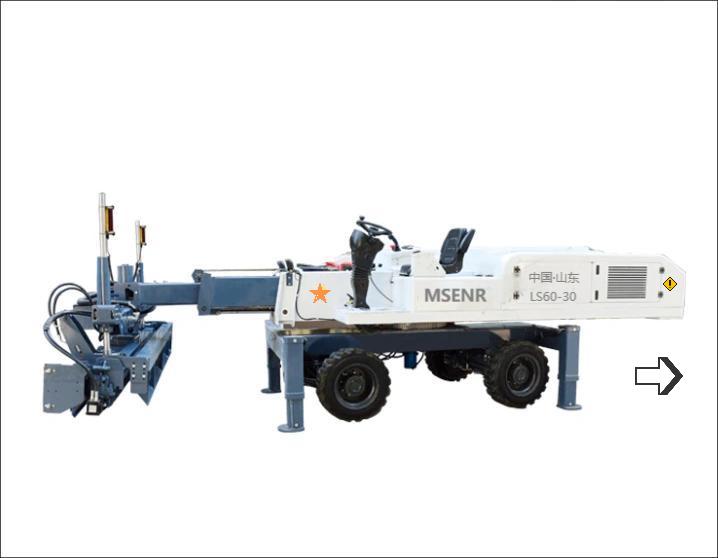

The JB60-30 Laser Screed Machine is a high-performance equipment engineered for superior efficiency and lasting value. It integrates screeding, leveling, and vibratory compaction into one seamless operation.
Equipped with an automatic scraper, the system transfers concrete from high spots to low areas to maintain consistent surface elevation. Its "Quick Pass" feature allows autonomous spreading of excess concrete during discharge without manual effort.

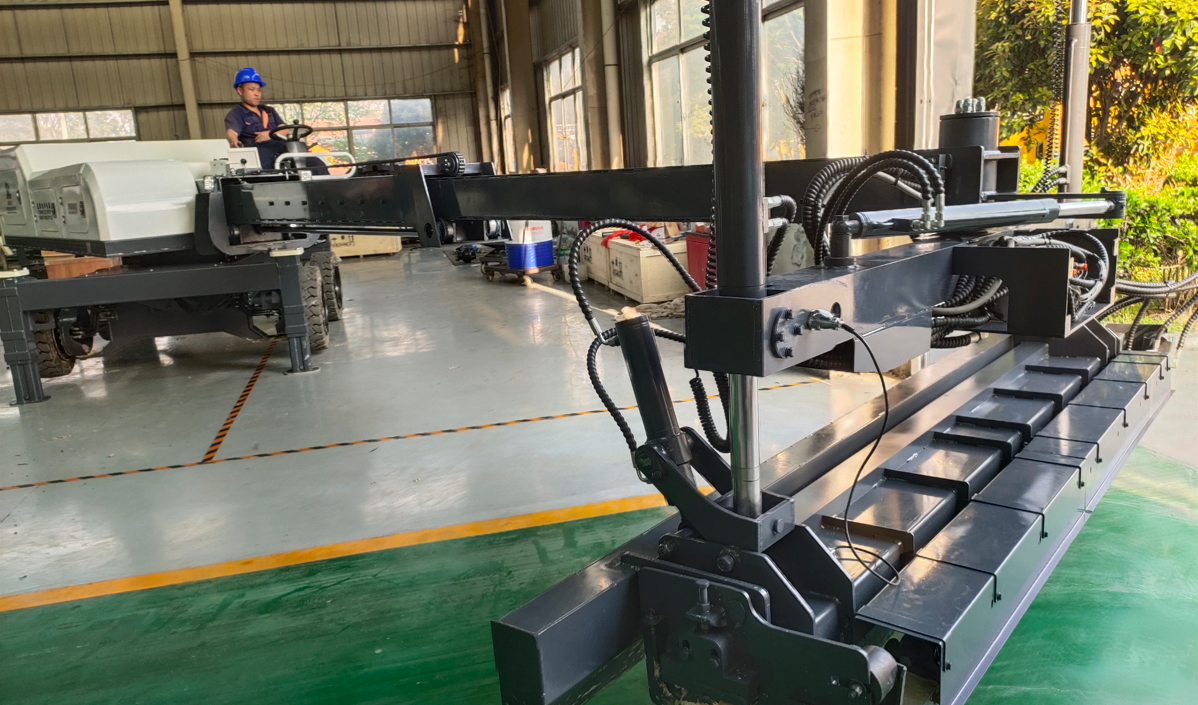

A hydraulically driven auger precisely trims the concrete to the target grade. Surplus material is efficiently moved to the right side by a dual-auger system and an offset scraper. Paired with an extended curved baffle, the machine further flattens and redirects excess concrete back into the auger’s work zone. This intelligent layout significantly reduces overlap width and enhances both output and surface quality.
Specifications
| Name | Concrete Laser Screed | Vibration Frequency | 60HZ |
| Type | JB60-30 | Laser System | Trimble brand |
| Engine Type | YANMAR 4TNV94L | Laser Control System | Microcomputer laser scanning |
| Characteristic | Diesel, 4 Stroke,4 Cylinder | Applicable Scope | Flat Surface 、Slope 、Double Slope |
| Cooling System | Closed Cooling Liquid | Drive type | Full Hydraulic Drive |
| Power | 35.5KW/ 2800rpm | Soft Landing | Soft Landing System |
| Fuel | Diesel | Mini Turning Radius | 2.6M |
| Fuel Tank Volume | 100L | Cooling Liquid Tank | 150L |
| Engine Oil Volume | 2.4-5.3L | Tyre | Solid puncture-proof &antiskid tyre |
| Leveling system | SLS (self leveling system) | Walking Speed | 3KM/H |
| Screed Width | 3. 1M | Working Speed | 18 sq.m/Min |

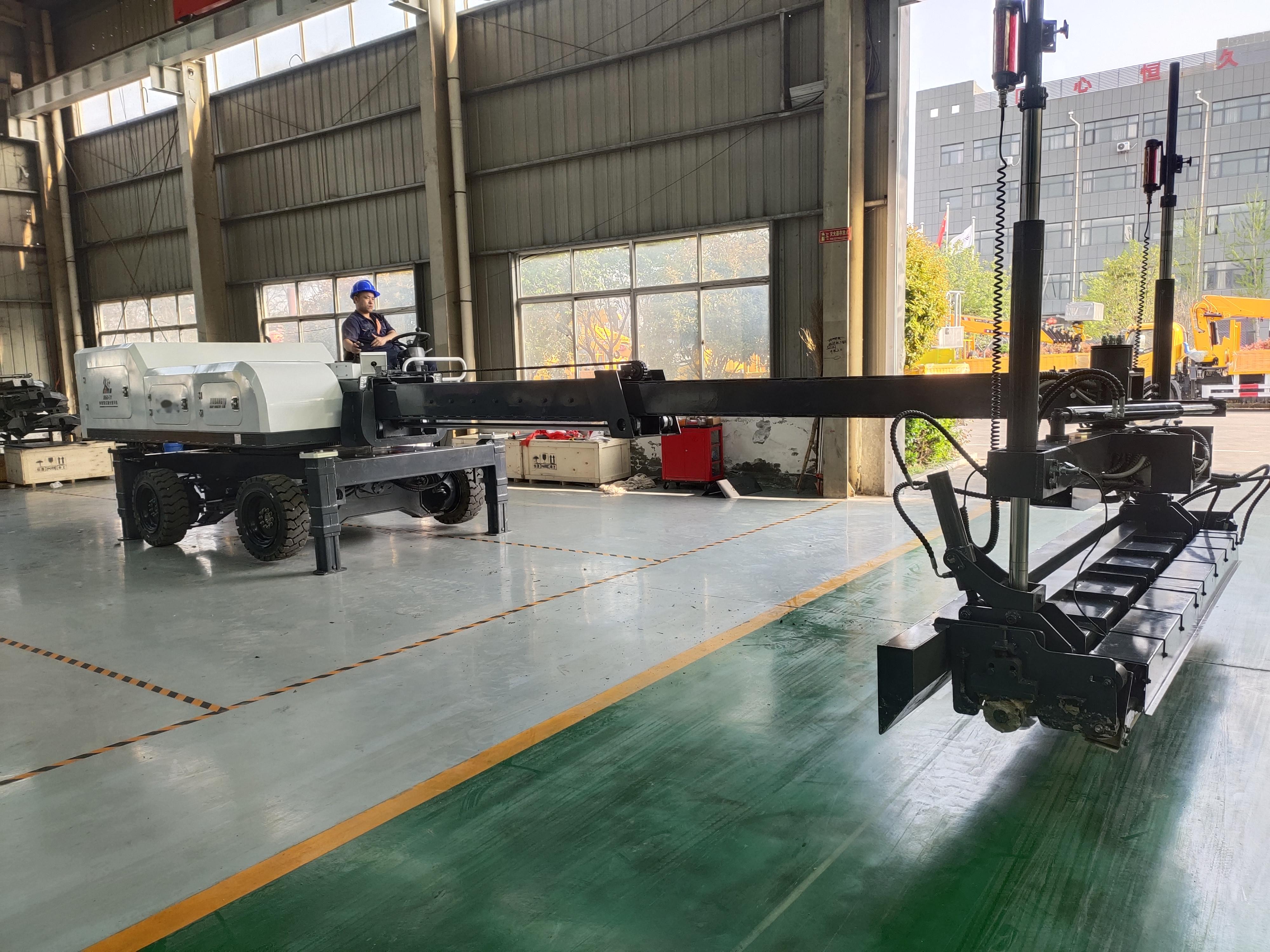

| Telescopic Boom | 6M Long, 360° Rotation | Speed Control | Stepless Speed Change. |
| Screed Swing Angle | 120° | Turning | 2 Wheel/4Wheel/ Crab Turning. |
| Paving Mode | Hydraulic Screw Conveyor Paving | Clean machine | Self configuration of machine |
| Paving Thickness | 100-450MM | Theoretical Flow | 12L/min. |
| Leveling Precision | 1.5mm | Rated Pressure | 150BAR |

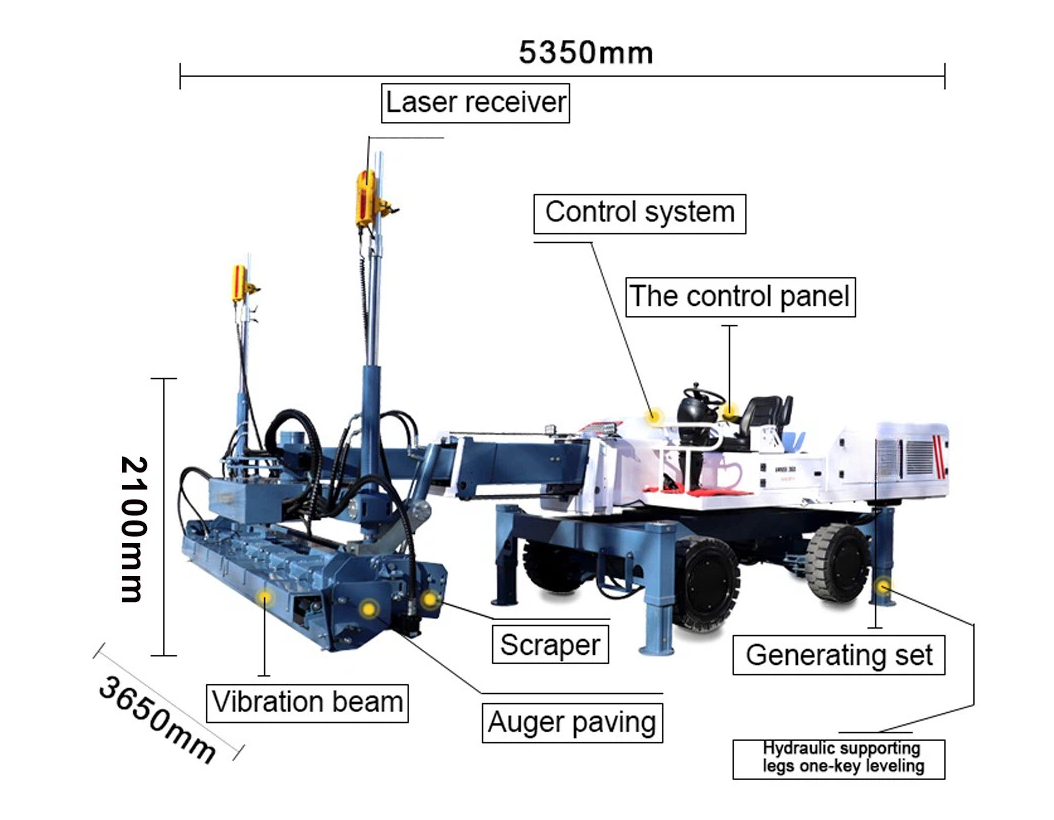

| Vibrating System | Hydraulic Eccentric Vibrating Beam | Outline Dimension | 5350*3650*2100 mm |
| Configuration | Laser Emitter & Receiver, Tripod. | Net Weight | 5500Kgs |
| Excitation Force | 3000N |
