Advanced Telescopic Boom Lift
Our next-generation Telescopic Boom Lift delivers direct vertical reach with lithium-electric power, ensuring quiet, zero-emission operation and effortless use. The innovative telescopic boom provides exceptional horizontal reach, enabling access to elevated work areas that are beyond the capability of traditional aerial platforms.
Engineered for high performance, the platform boasts a robust 460 kg load capacity, offering superior working height and greater payload in its class. Productivity is significantly enhanced by the Rapid Lift function, which allows the platform to be lowered directly to the ground without complex boom articulation.
Specifications
| 34m Boom Lift | 28m Boom Lift | 23m Boom Lift | ||
| No. | Item | Parameter | Parameter | Parameter |
| 1 | Max. working height | 34.6m | 28.78m | 24m |
| 2 | Max. platform height | 32.6m | 26.78m | 22m |

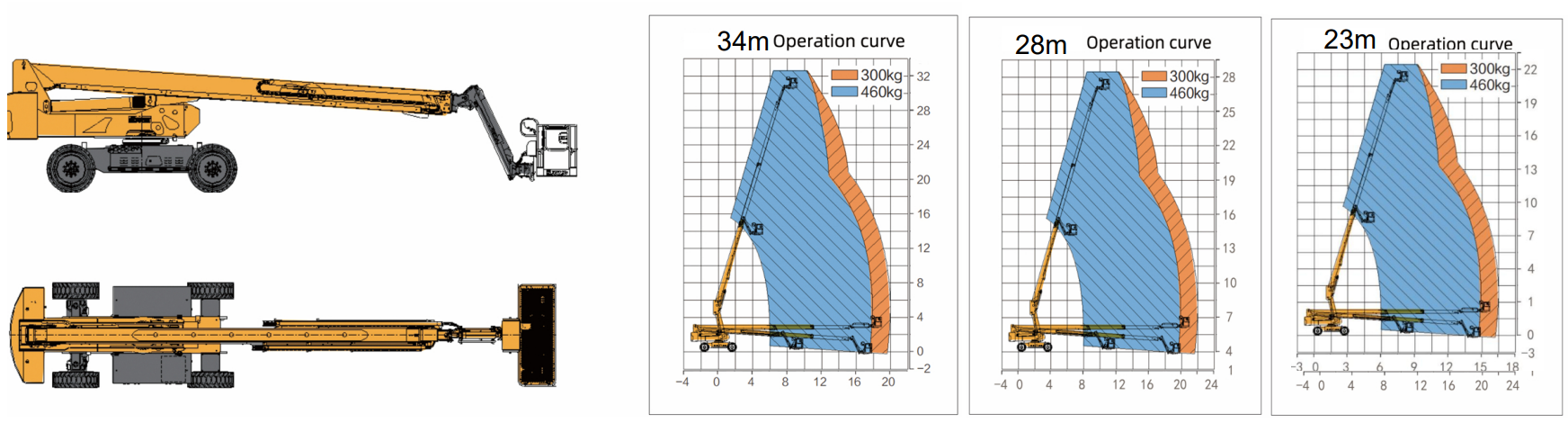

| 3 | Max. working range | 20m | 20.9m | 16.5m |
| 4 | Length (transport size) | 12980m | 9815m | 7150mm |
| 5 | Width | 2490mm | 2475mm | 2450mm |
| 6 | Height | 2925mm | 2895mm | 2770mm |
| 7 | Bucket size | 2440*900*1150mm | 2440*900*1150mm | 2440*900*1150mm |
| 8 | Wheel base | 3200mm | 3200mm | 2520mm |
| 9 | Rated load (unrestricted) | 300kg | 300kg | 300kg |
| 10 | Rated load (restricted) | 460kg | 460kg | 460kg |
| 11 | Driving speed | 6km/h | 6km/h | 5.2km/h |
| 12 | Max. climb capability | 30% | 30% | 30% |
| (Counterweight end down) | ||||
| 13 | Max. climb capability | 45% | 45% | 45% |
| (Counterweight end up) | ||||
| 14 | Max. lateral driving grade | 25% | 25% | 25% |
| 15 | Tail swing | 1930mm | 1520mm | 1700mm |
| 16 | Boom variation range | -4~+75 | -5~+75 | -5~+75 |
| 17 | Platform rotation Angle | ±90° | ±90° | ±90° |
| 18 | Inside turning radius | 3500mm | 3500mm | 2690mm |
| 19 | Outside turning radius | 6500m | 6500m | 5450mm |
| 20 | Turntable rotation angle | 360° continuous | 360° continuous | 360° continuous |
| 21 | Weight | 18600kg | 16600kg | 10500kg |
| 22 | Battery | 638/49 Ah/V | 638/76.8 Ah/V | 51.2V/420 Ah |
| 23 | Pump unit | AC 21/52 kw/V | AC 21/52 kw/V | AC 32V/10kw |
| 24 | Auxiliary power | DC 1.9/12 kw/V | DC 12V | 12V DC |
| 25 | Drive motor | AC 5.2/80 kw/V | AC 5.2/52 kw/V | AC 32V/3.3kw |
| 26 | Drive | 4x4 | 4x4 | 4*4 |

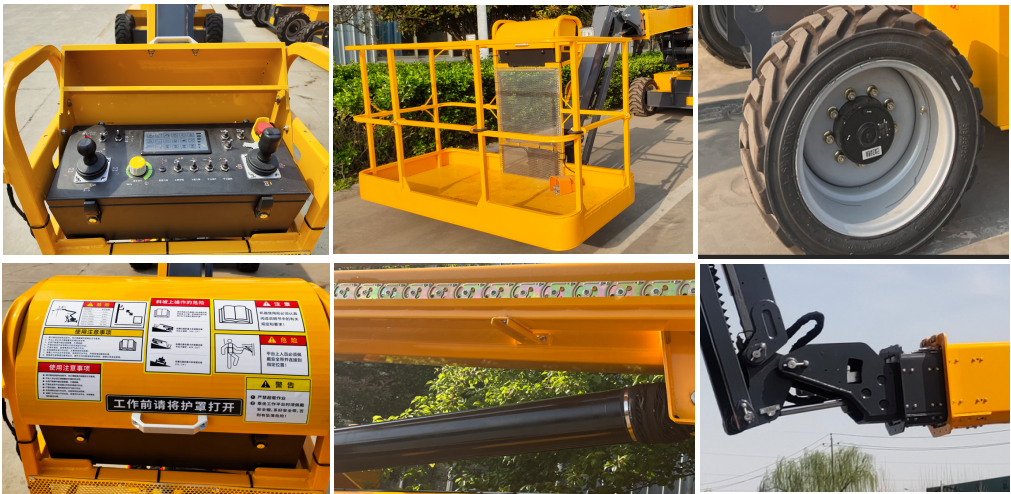

For maximum safety and reliability, the unit is equipped with a comprehensive suite of features, including a telematics pre-interface, an active protection system, hardened components for harsh environments, intuitive thumb-rocker steering, and mechanical anti-entrapment devices.
