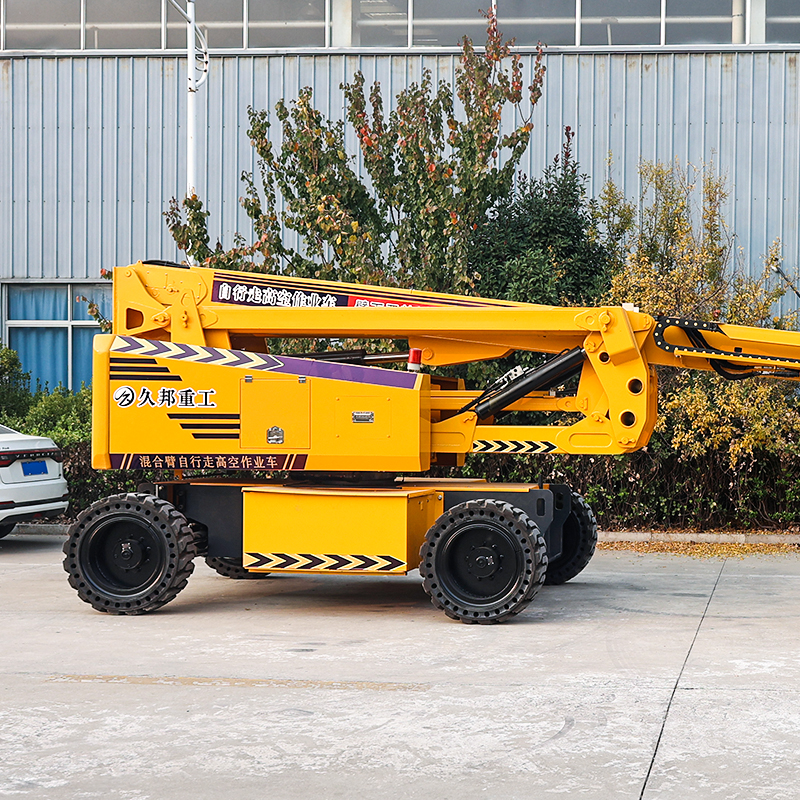

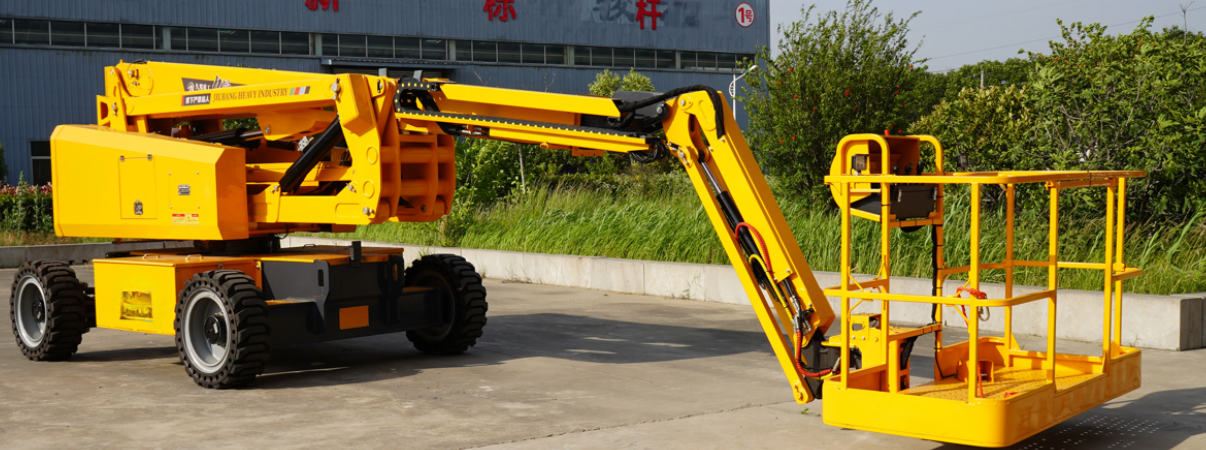

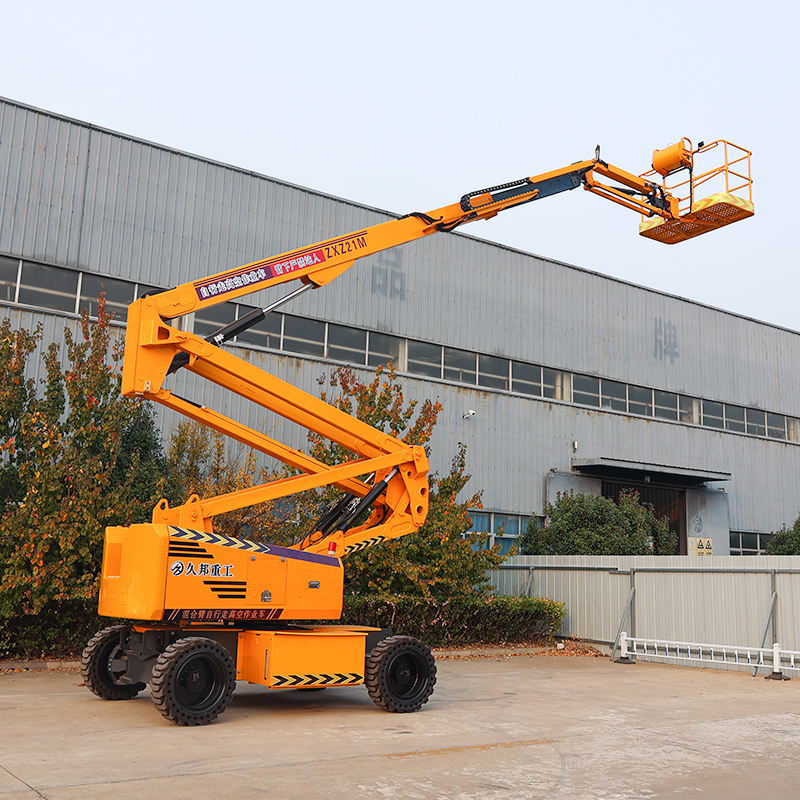

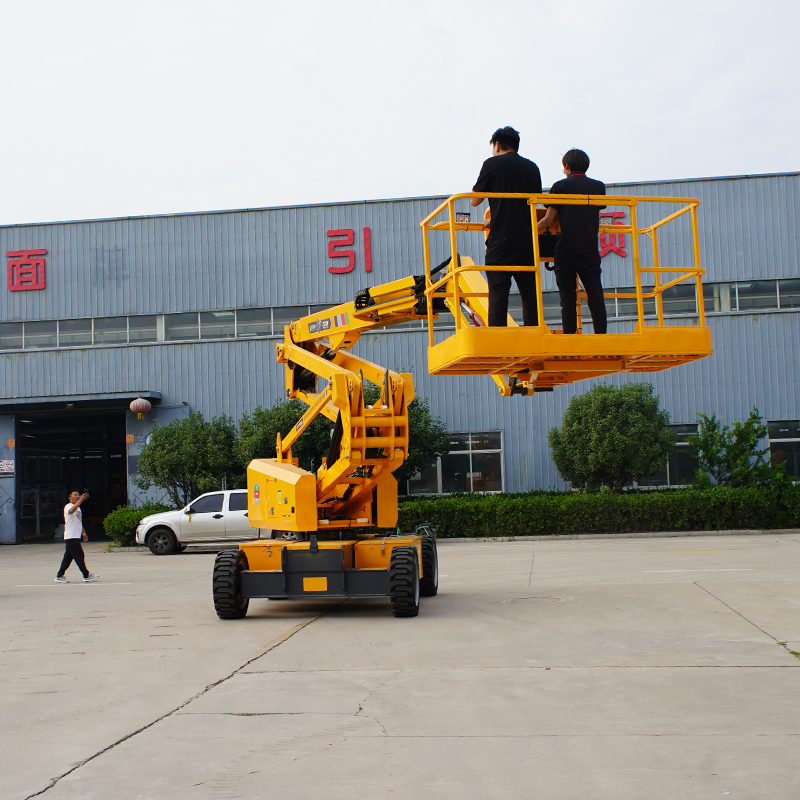

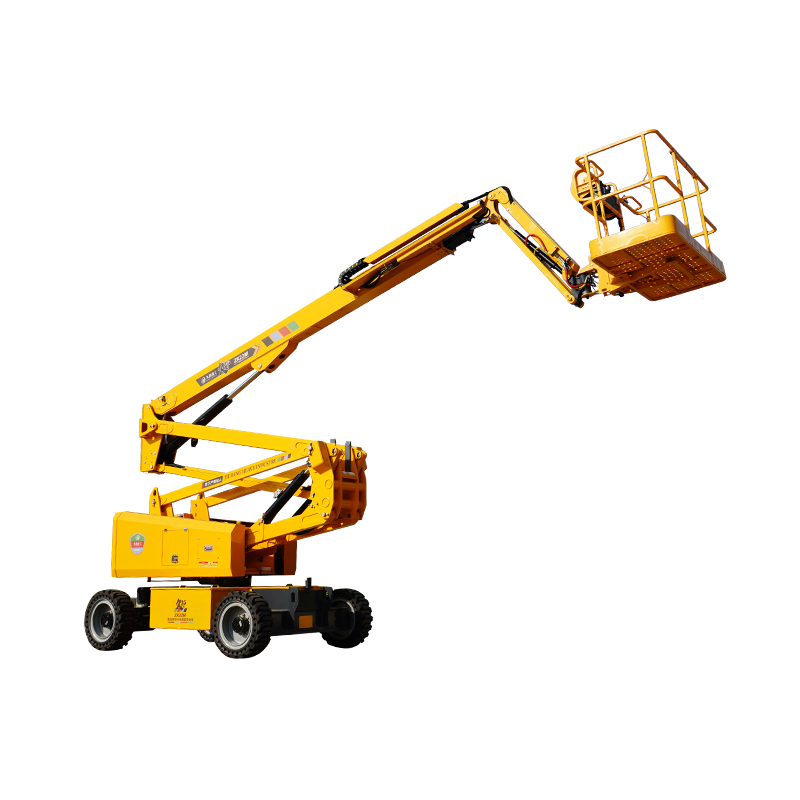

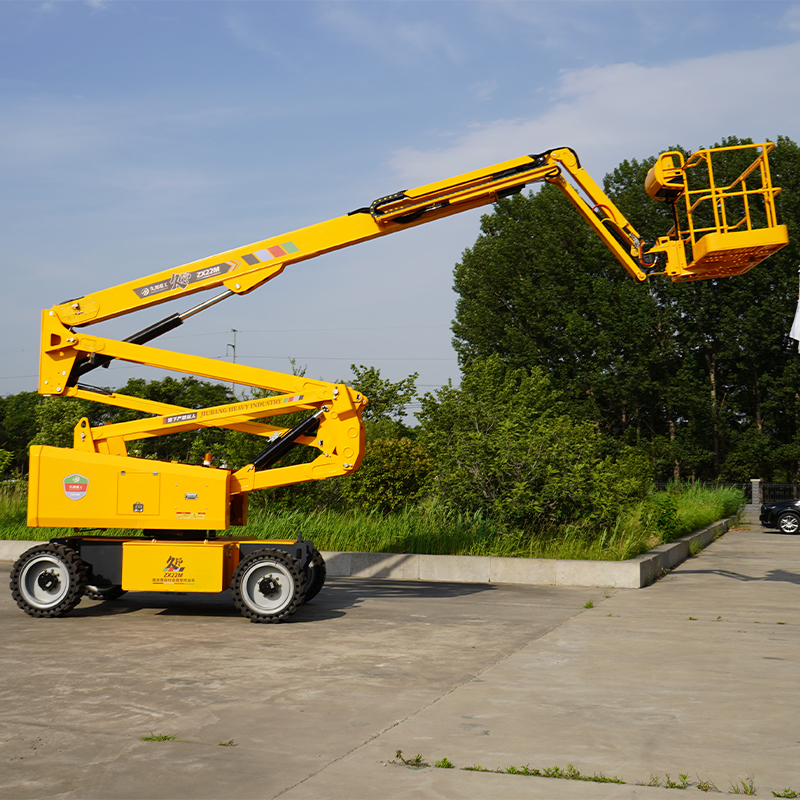

Articulating Electric Boom Lift: 16m & 22m Models
Introducing our next-generation articulating boom lift, engineered for maximum performance in confined industrial spaces like factories and warehouses. Powered by a robust 48V lithium-ion battery system (300Ah), it ensures zero-emissions, quiet operation, and extended runtime for indoor applications.
This model excels with its compact design (1.76m width, 0.2m tail swing) and impressive articulation. The boom offers a maximum horizontal reach of 7.5m and a platform rotation of ±80°, allowing operators to easily navigate around obstacles and position the platform with precision. With a substantial platform load capacity of 230kg, it is built for productivity.
Available in maximum working heights of 16m and 22m, this lift combines powerful drive motors with a tight turning radius, making it the ideal solution for challenging, narrow work zones.
Self-propelled aerial work platform, articulated boom

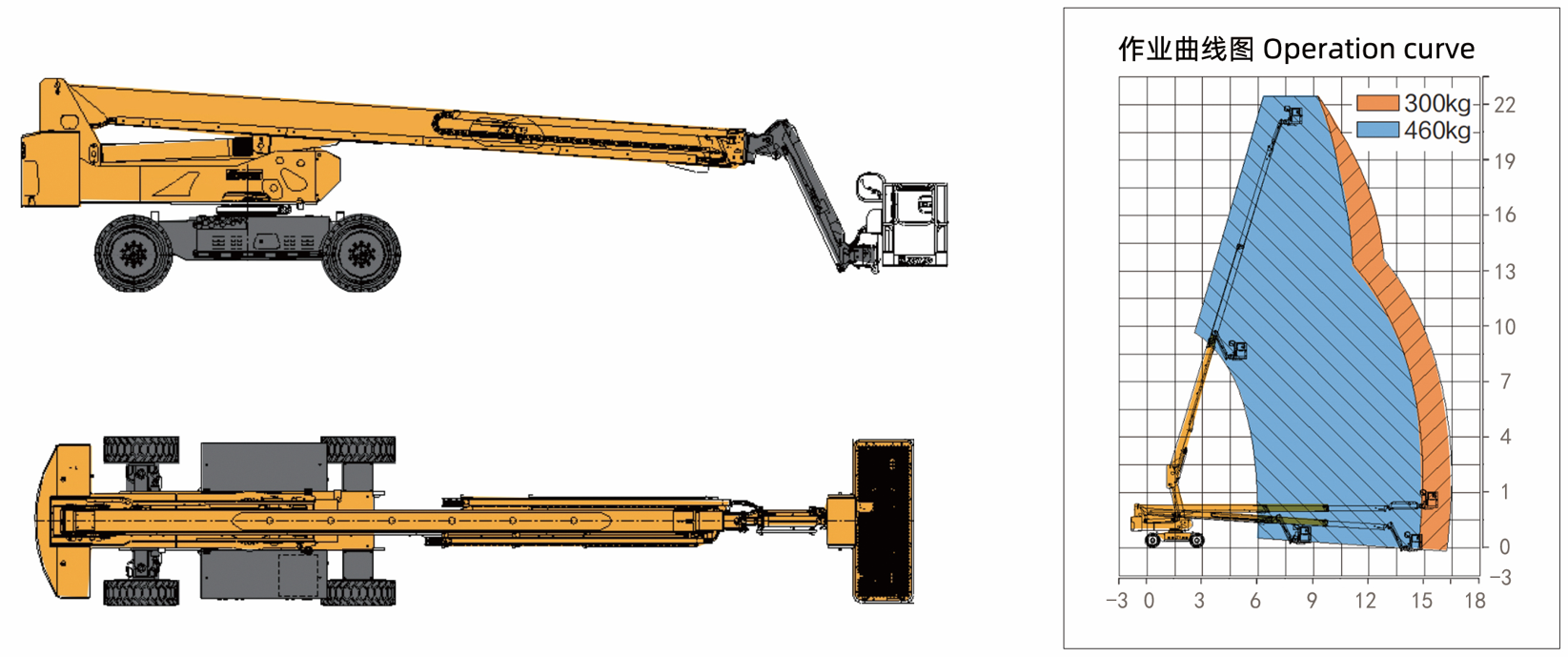

Specifications
| Item | Parameter 16M | Parameter 22M |
| Max. working height | 16m | 22m |
| Max. platform height | 14m | 19.45m |
| Max. horizontal extension | 7.5m | 11.45m |
| Max. span height | 7.5m | 8.25m |
| A length | 6.7m | 8.72m |
| B width | 1.78m | 2.49m |
| C height | 2m | 2.52m |
| D bucket length | 1.81m | 1.83m |
| E bucket height | 0.73m | 0.76m |
| F wheel base | 2m | 2.52m |
| G Min, ground clearance | 200mm | 330mm |
| Rated load | 230kg | 250kg |
| Max. driving speed | 5.2km/h | 6.1km/h |
| Max. climb capability | 30% | 45% |
| Inside turning radius | 1.15m | 200mm |
| Outside turning radius | 3.1m | 2.78m |
| Turntable rotation angle | 180° | 5.49m |
| Platfrom swing angle | ±85° | 400°discontinuous |
| Flying arm amplitude range±70° | ±90° | |
| H | 0.6m | 0.6m |
| Max. working angle | 3° | 3/5° |
| Pump motor power | 32V/7KW | 12.5m/s |
| Battery | 300Ah | 420Ah |
| Drive motor | AC 48V/3.3kw | AC 48V/3.3kw |
| Hydraulic oil tank | 42L | 75L |
| Weight | 7600kg | 9200kg |
