Telescopic Boom Aerial Vehicle | 30m Working Height | 200kg Capacity

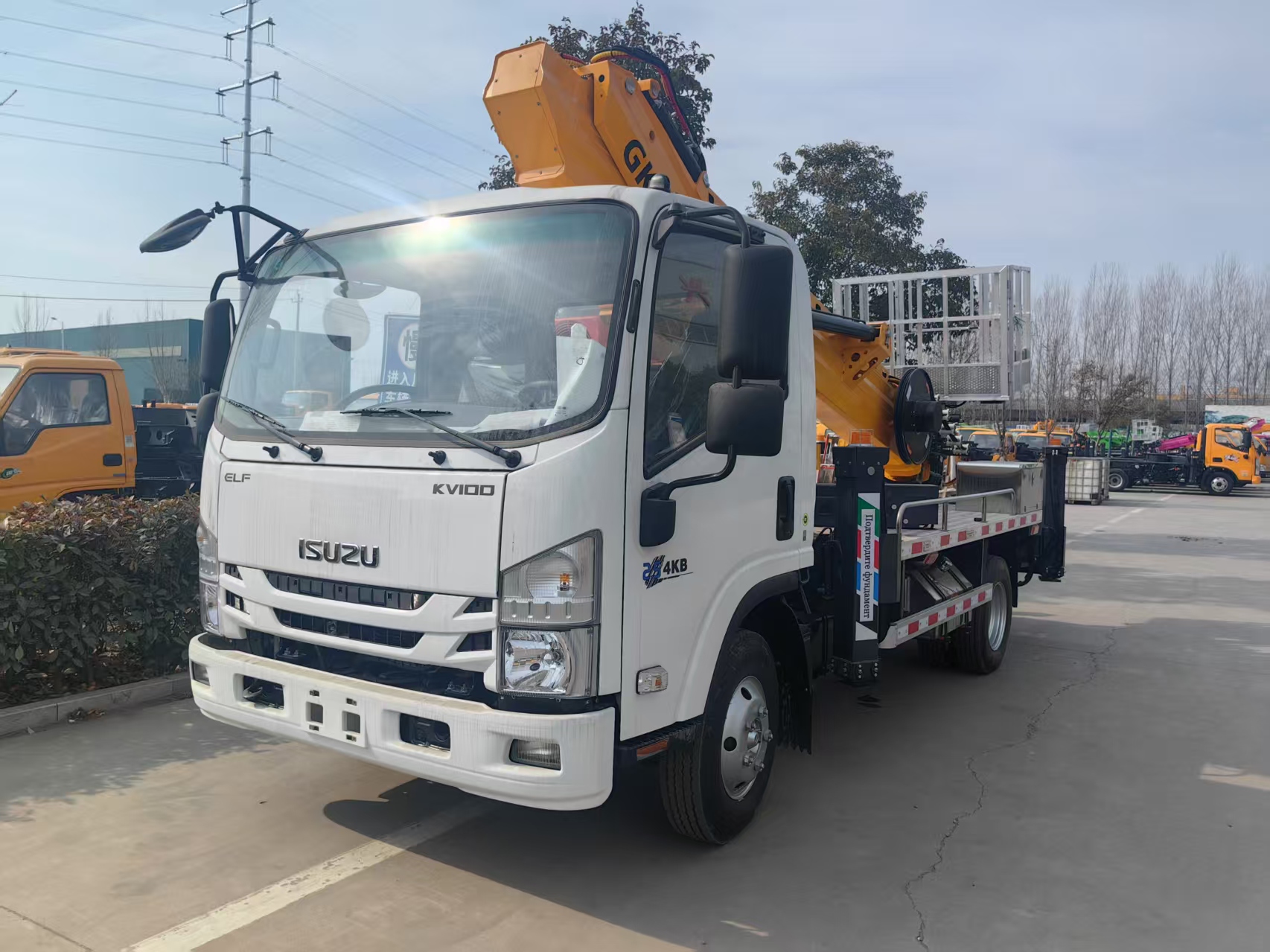

Engineered with an integrated ISUZU chassis, this telescopic boom aerial vehicle delivers a 30-meter working height while maintaining a 200kg payload capacity. The system incorporates synchronized hydraulic stabilizers and intelligent leveling technology to ensure operational stability across varying terrain conditions.
Designed for industrial maintenance and construction applications, the vehicle's structural configuration provides enhanced load distribution and positioning precision. Its engineering focus on functional reliability and operational safety offers professionals an efficient elevated work platform with consistent performance characteristics.
The combination of robust chassis engineering and advanced stability systems establishes this equipment as a technically proficient solution for demanding aerial work environments
Specifications
| Parameters of 30.5m Aerial Working Platform | |
| Total size | 5322*2070*2507mm |
| Weight | 3300kg |
| Bucket load | 200kg |
| Max. working height | 30.5m |
| Working range at max. working height | 5m |
| Max. working range | 16m |
| Working height at max. working range | 25m |
| Leg span (lateral) | 4462mm |
| Leg span (longitudinal) | 4918mm |
| Power take off | Mechianiclly operation |
| Bucket size | 1400*700*1200mm |
| Boom type | 7-section eighteen-sided working arm |
| Rotation | 360° |
| Legs | Front V rear H type, individually adjustable |
| No. of variable amplitude cylinders | 2 |
| Boom telescopic structure | Cylinder and wire rope type |
| Approach angle | 20° |
| Departure angle | 13° |
| Operation way | remote control/manual operation |
| Emergency operation | automatic emergency operation |
| Control system | CAN bus control system |
| Leveling system | automactic leveling |
| Control voltage | 12V |
Advanced Aerial Work Platform: Engineered for Safety and Stability
Our aerial work platform incorporates proprietary technologies and innovative engineering to deliver unparalleled safety and performance for high-altitude operations.
Advanced Safety & Protection Systems
Intelligent Interlock System: Our platform features an original automatic interlock mechanism that secures the entry/exit process, significantly mitigating the risk of accidents caused by operational errors.
Dual-Mode Descent Assurance: An integrated automatic emergency pump serves as a redundant safety measure, guaranteeing a safe and controlled return to ground level in the unlikely event of a main pump failure.
Immediate Operation Halting: The work platform is equipped with an emergency stop device that instantly ceases all functions and locks the boom movement, providing critical intervention capability to prevent incidents.
Robust Structural Design & Features
Multi-Faceted Boom for Superior Stability: The platform utilizes an innovative eighteen-sided boom design. This unique geometry provides exceptional torsional rigidity and stability, enabling it to handle significantly greater loads with ease compared to conventional designs.
High-Capacity Rectangular Outriggers: Engineered with square-profile hydraulic outriggers, the system offers an expanded ground-bearing area. This results in superior load distribution and a more stable foundation on varied terrains.
Enhanced Visibility for Night Operations: For safe around-the-clock operation, the vehicle is outfitted with a comprehensive warning system, including high-intensity engineering strobe lights and powerful LED work lights to ensure optimal visibility and worksite awareness.

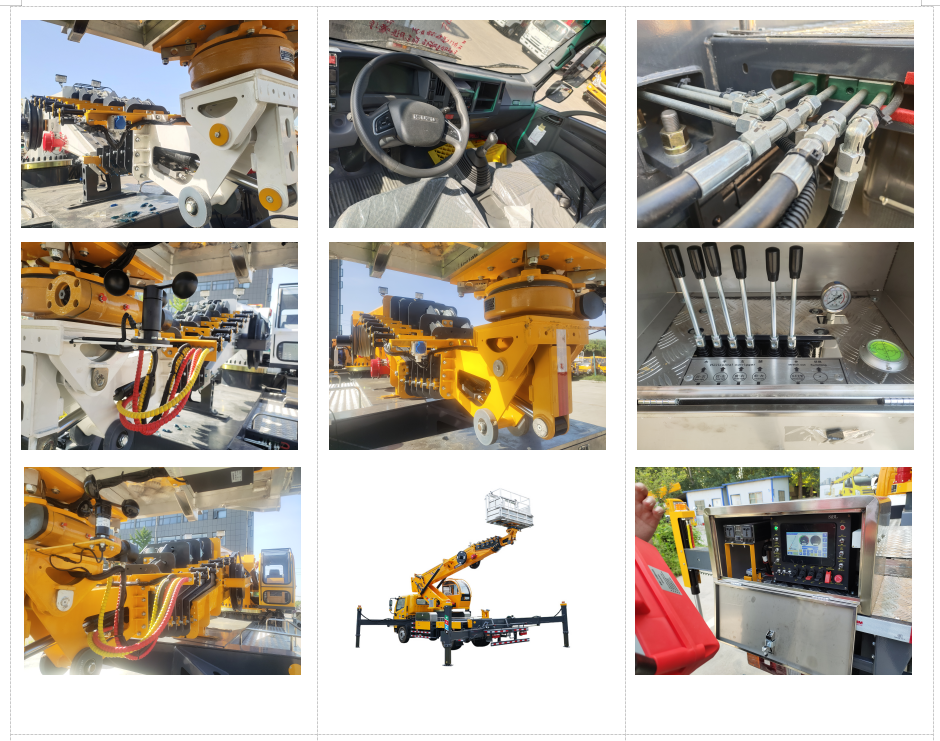

Product Details:
