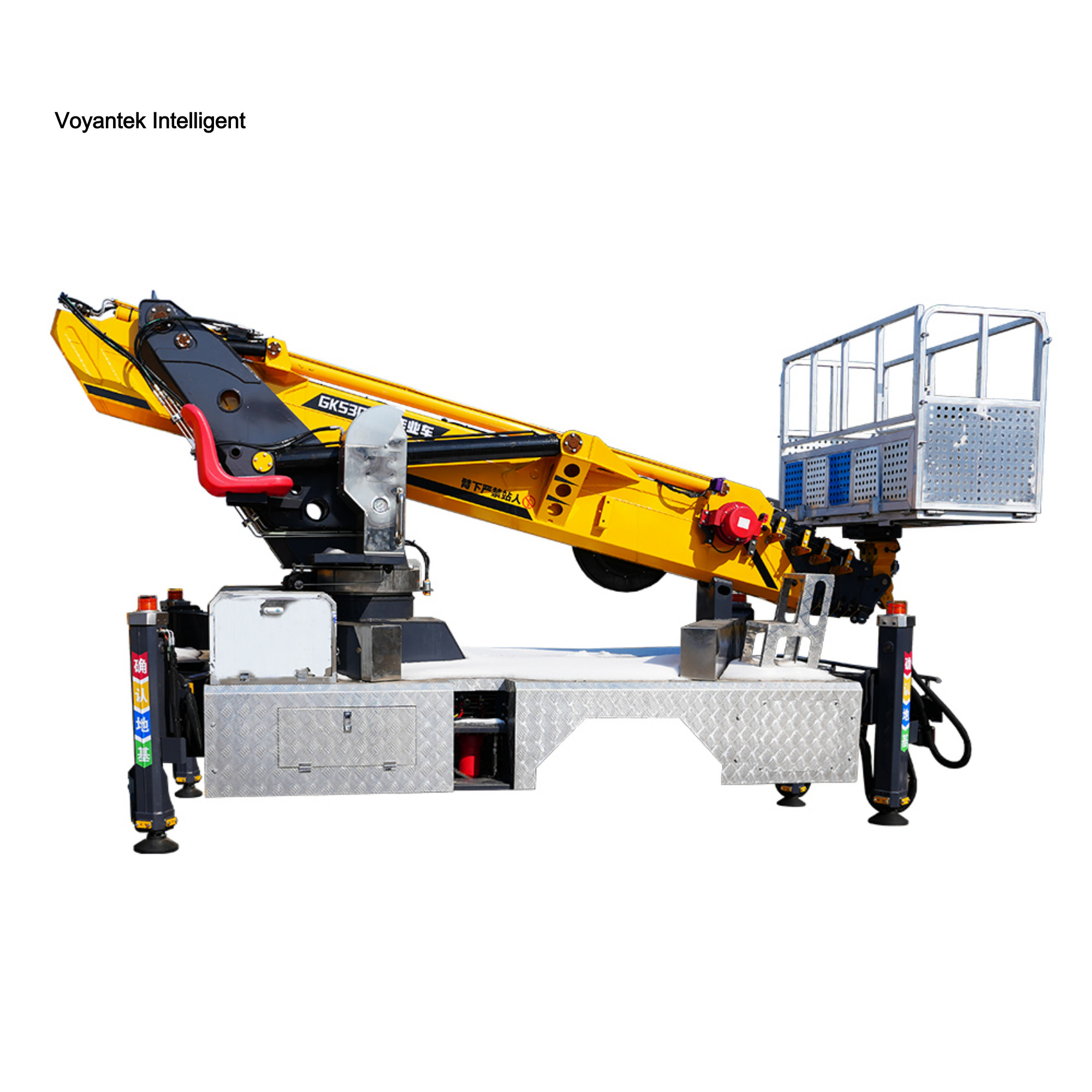

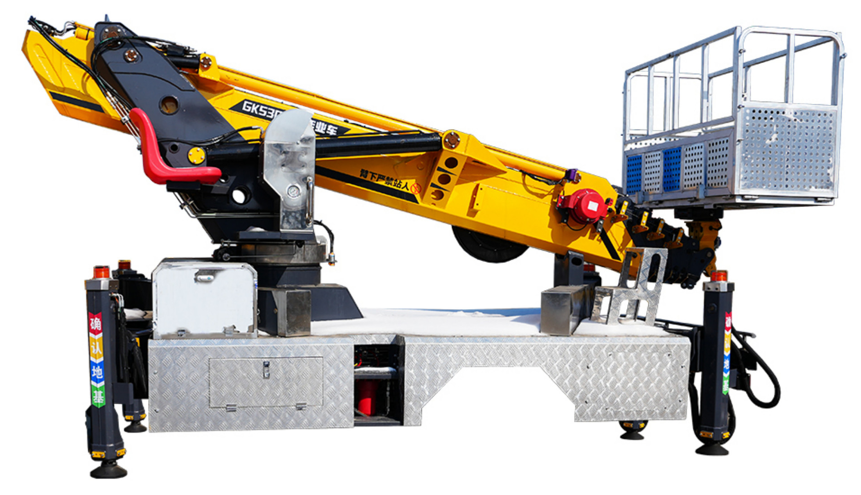

The upper part of the aerial work platform
Core Features
16-18 sided polygonal boom system crafted from high-strength manganese steel
Quad-configuration synchronized telescopic outriggers
360° continuous slewing capability
Universal chassis integration (2,880-4,700mm wheelbase)
Engineered for exceptional compatibility and performance, our advanced aerial work platform superstructure seamlessly integrates with leading truck chassis including ISUZU, FOTON, FAW, and other major brands. This robust system combines innovative engineering with practical functionality to meet diverse elevated access requirements.
Technical Specifications

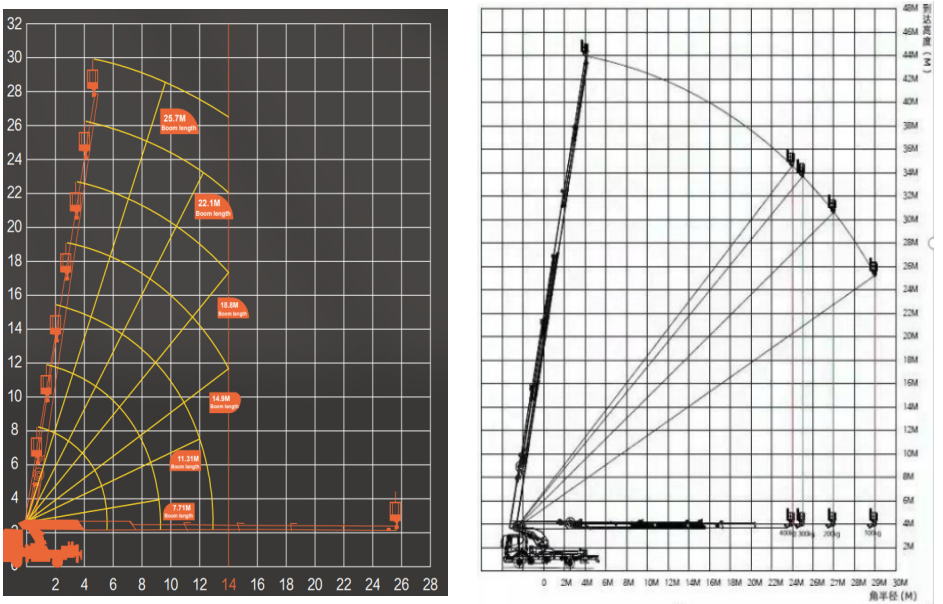

Working height: 28-56m
Platform capacity: 200kg

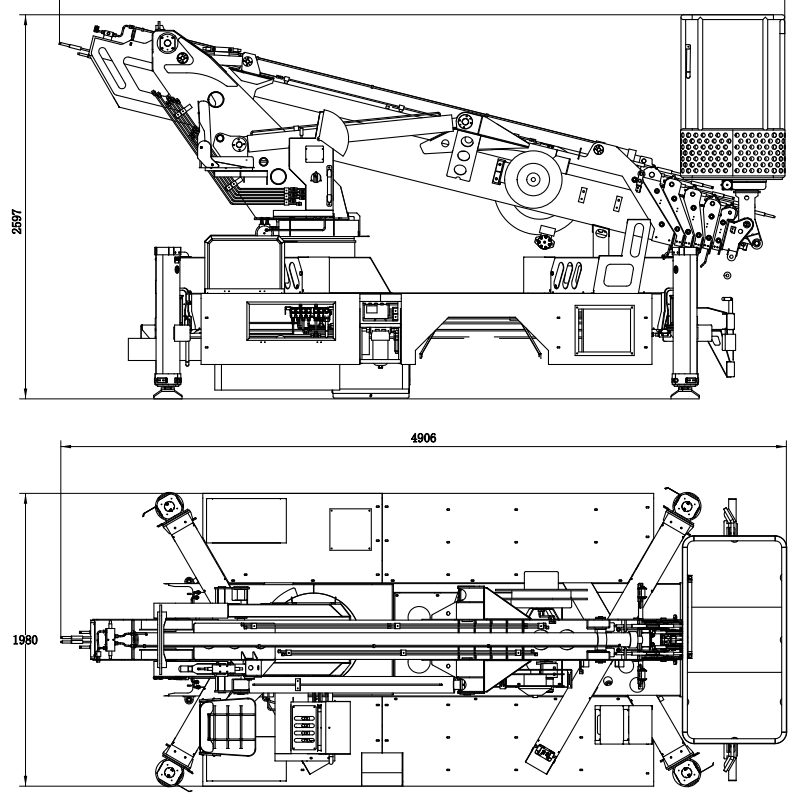

Specifications 28m upper part of the aerial work platform
30m 45m
Engineering Excellence
Our proprietary polygonal boom geometry ensures optimal stress distribution, while the manganese steel construction delivers exceptional fatigue resistance. The integrated stability system features smart outrigger deployment with automatic leveling functionality.
The modular interface architecture enables seamless adaptation to multiple chassis brands without structural compromise. Advanced safety systems incorporate redundant hydraulic circuits and real-time load monitoring.
This superstructure represents the pinnacle of aerial platform engineering, combining robust construction with intelligent control systems for superior performance in demanding applications.
