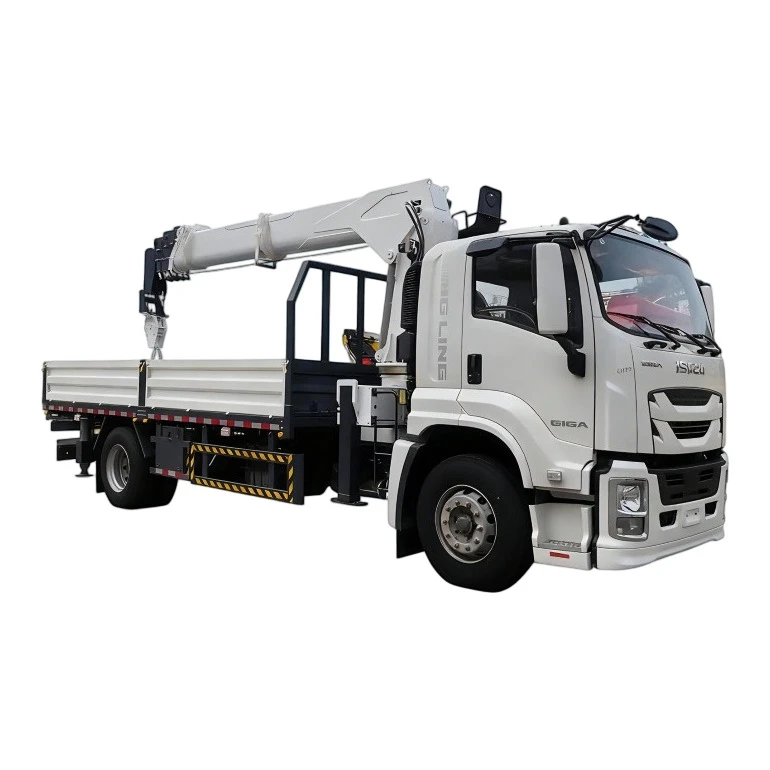

Truck Mounted Crane 10 Ton

The truck mounted crane 10 ton is a specialized engineering vehicle based on the ISUZU GIGA series heavy-duty truck chassis, equipped with a 10-ton hydraulic lifting superstructure. This vehicle combines road transport and lifting functions into a single machine, enabling "self-loading, self-unloading, self-transporting, and self-lifting" operations. Powered by ISUZU 6HK1 or 6UZ1 series engines delivering 240 to 380 horsepower, it is widely used in construction, logistics, municipal maintenance, and heavy-duty operations.

1. ISUZU GIGA Chassis-A Reliable Foundation For Heavy-Duty Operations

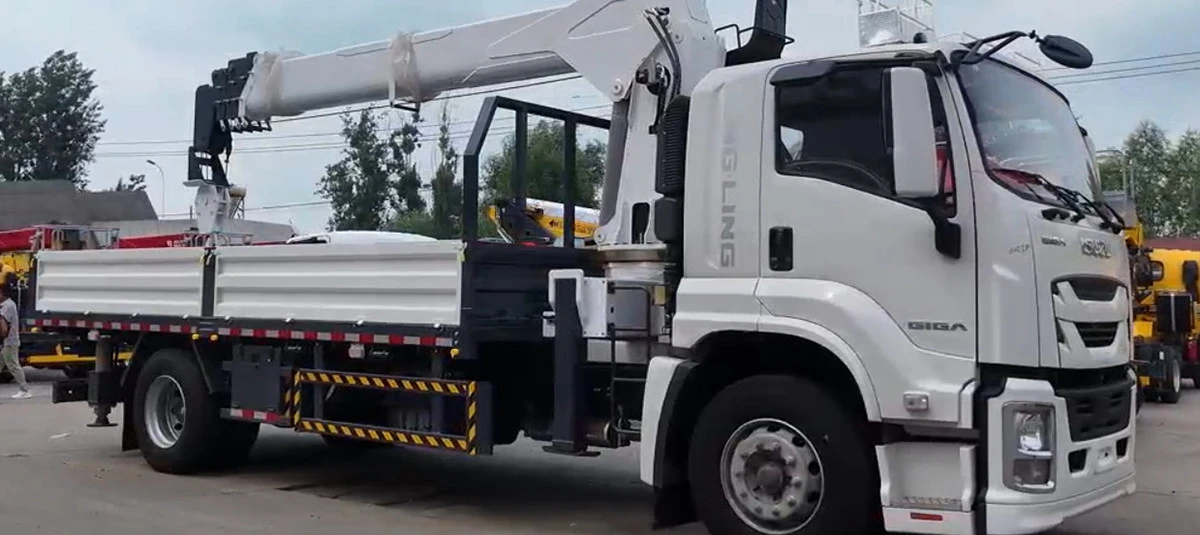

The 10-ton ISUZU truck-mounted crane is built on the ISUZU GIGA heavy-duty chassis, powered by ISUZU 6HK1 or 6UZ1-TCG61 diesel engines. The 6HK1 engine delivers 240 HP (177 kW) with 9.726L displacement and maximum torque of 1460 N·m; the 6UZ1-TCG61 engine delivers 380 HP (279 kW) with maximum torque of 1800 N·m. Engines comply with Euro 5/Euro 6 emission standards, offering strong power and excellent fuel economy.

Chassis drive configurations include 4×2 and 6×4 options. The 6×4 model is equipped with 10+1 tires (11.00R20), providing superior load capacity and driving stability. FAST 8-speed or ZF 8-speed automatic transmissions ensure smooth and reliable power delivery. The ISUZU GIGA chassis is known for its extended service life and low failure rates, particularly suitable for demanding, high-intensity operations.

2. 10-Ton Lifting Capacity For Diverse Operations

This equipment features a 10-ton hydraulic crane with a rated lifting capacity of 10,000 kg (at 2.5m radius). Maximum lifting heights reach 16.1-17.3 meters, with maximum working outreach of 12.6-14 meters. The 4-section telescopic boom with 360° continuous slewing meets various heavy lifting needs including steel construction, equipment installation, and port cargo handling.

3. Flexible Brand And Boom Configuration Options

The 10-ton ISUZU truck-mounted crane can be equipped with various crane brands based on user requirements. PALFINGER is an international leading brand with Austrian technology and precision hydraulic systems; XCMG is a leading domestic brand with mature K/M/G series technology; Sany Palfinger is a joint venture brand balancing performance and value; Furukawa UNIC and HIAB are Japanese/European professional loader crane manufacturers.

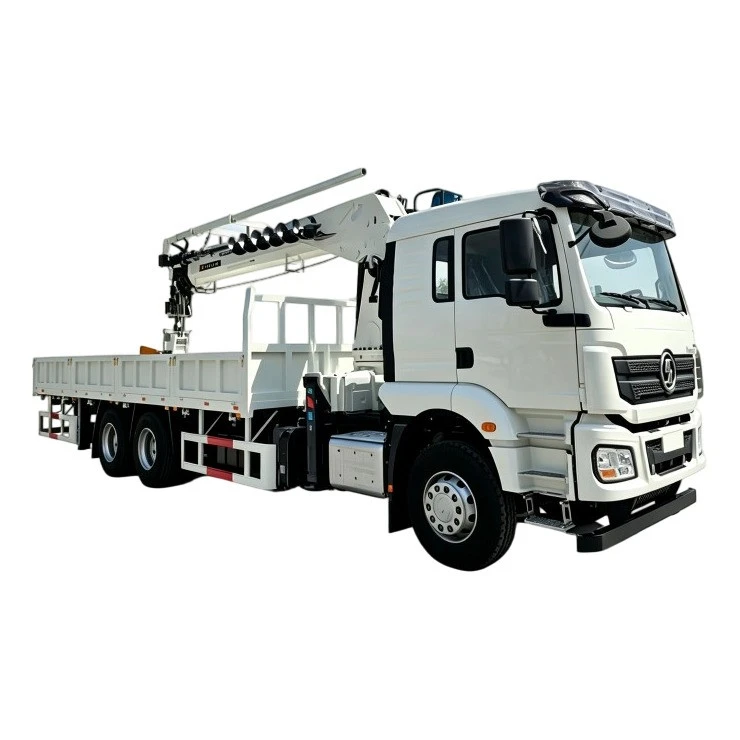

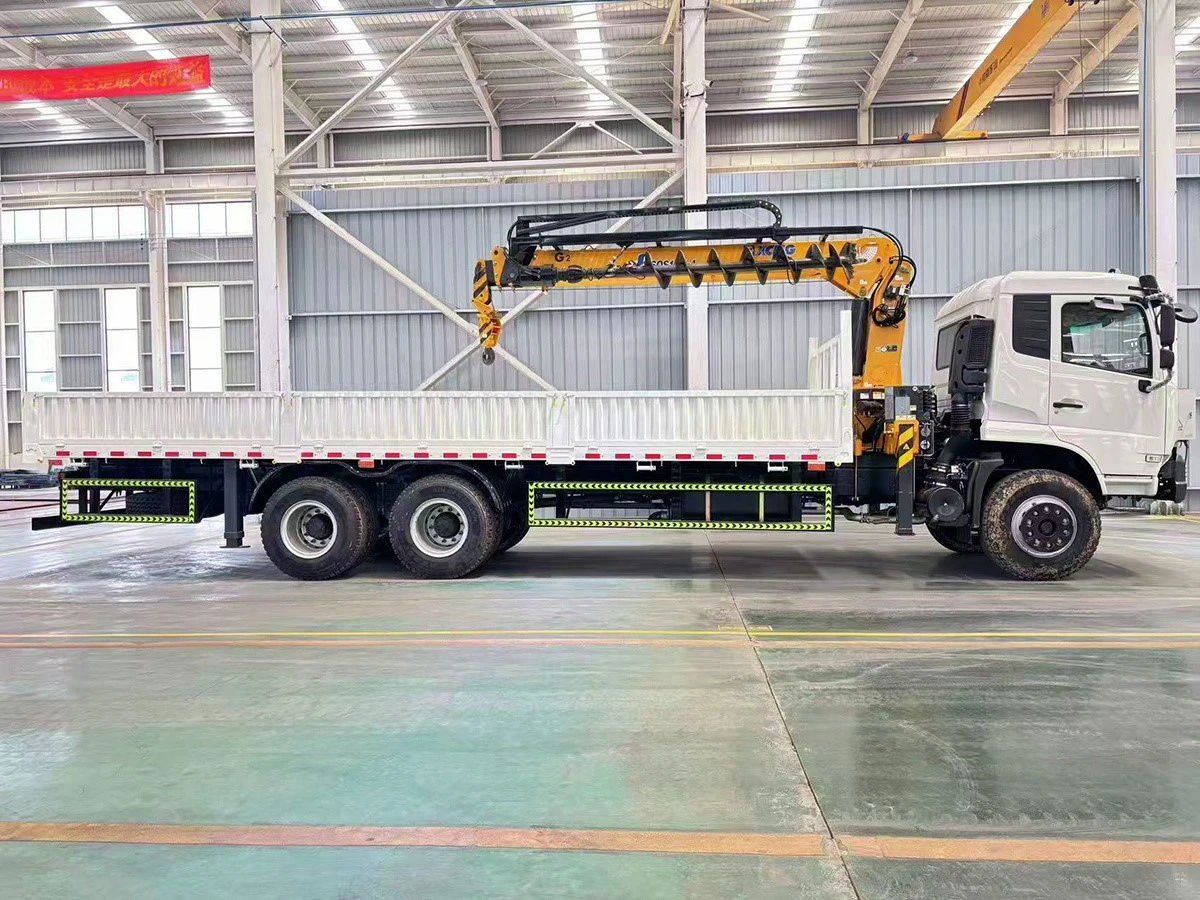

Boom configurations include telescopic (straight) booms for vertical lifting with simple structure and large lifting moment, and knuckle (folding) booms with compact folded size and superior obstacle-crossing capability for confined spaces.

• Engine: A 4HK1-TCG60 diesel engine. This is a modern, 5.2-litre, turbocharged-intercooled engine producing 205 horsepower. It is known for its reliability and torque
• Gearbox: An Isuzu MLD-6Q manual transmission. This is a 6-speed gearbox

• Tyres: 295/80R22.5 18PR. These are large, commercial truck tyres. The "18PR" (Ply Rating) indicates a very strong tyre capable of handling heavy loads
