Introduction
FOTON aerial platform trucks combine FOTON's reliable commercial chassis with professional hydraulic aerial work platforms. With working heights from 20 to 35 meters, telescopic or articulated boom configurations, CAN-bus control systems, wireless remote control, and comprehensive safety features, these vehicles are widely used in utility maintenance, municipal landscaping, telecommunications construction, and building facade work.
Core Advantages
1. Trusted FOTON Chassis & Powertrain
FOTON aerial platform trucks are built on proven FOTON AUMARK or FOTON Times chassis platforms, powered by Yuchai D20TCIF2 or Quanchai H20-120E60 Euro 6 engines delivering 90 kW (approx. 120-122 HP) with maximum torque of 320-325 N·m for responsive power delivery and excellent fuel efficiency. The WLY5G32 5-speed manual transmission ensures smooth and reliable power transmission.
2. Multiple Working Height & Boom Configurations
FOTON aerial platform trucks offer a range of working heights and boom configurations to suit different operational requirements:
|
Configuration |
Working Height |
Application |
|
16m Articulated/Telescopic |
16 meters |
Urban maintenance, tree trimming |
|
23m 4-section Telescopic |
23 meters |
Utility work, street lighting |
|
27m Telescopic |
27 meters |
Telecommunications, bridge inspection |
|
30m Telescopic |
30 meters |
High-rise buildings, large facilities |
3. Versatile Boom Options
FOTON aerial platform trucks are available with various boom types:
- Telescopic (Straight) Boom: 4-section hexagonal synchronized telescopic booms with compact structure and superior strength, reaching a maximum working radius of 14.7 meters-ideal for direct vertical access
- Articulated (Folding) Boom: 3-section folding arms offering superior flexibility and obstacle clearance
- Insulated Boom: Fiberglass-reinforced plastic construction with excellent insulation performance for live-line work

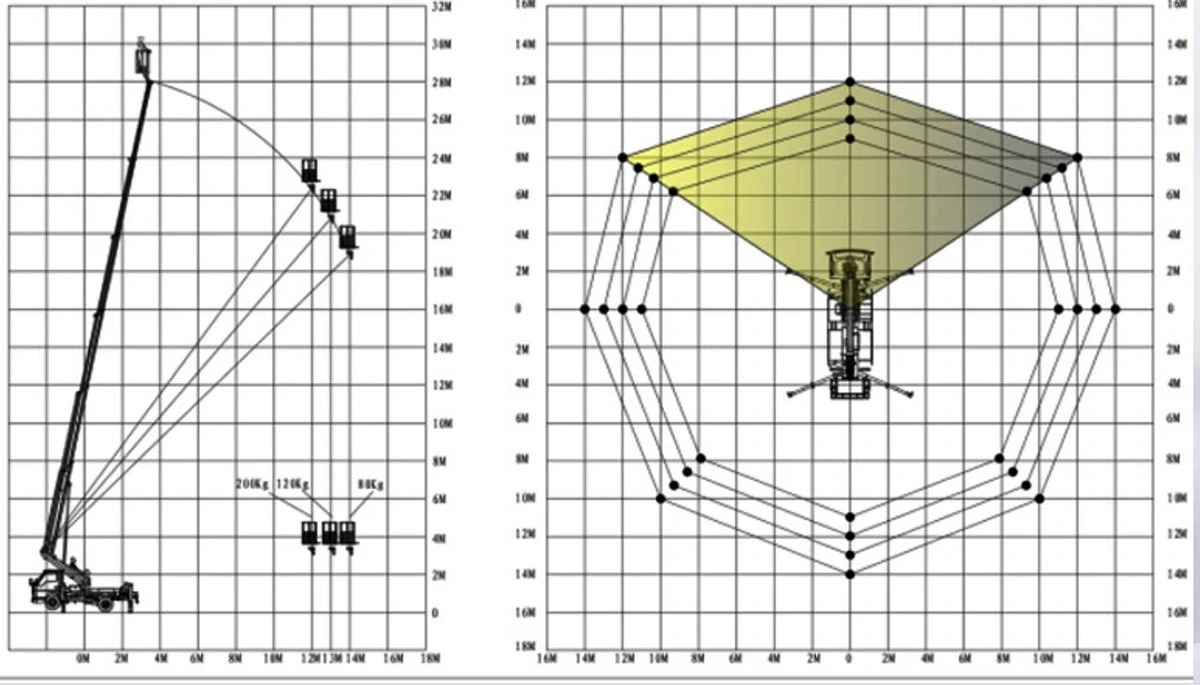

4. 360° Continuous Rotation & Wide Working Radius
The turntable enables ±360° continuous rotation, allowing operators to position the work platform precisely without repositioning the vehicle. Maximum working radius reaches up to 14.7 meters (23m model), significantly expanding coverage per single parking position.
5. Advanced Control & Safety Systems
FOTON aerial platform trucks are equipped with modern control systems and comprehensive safety features:
CAN-bus Control System: Combined with wireless remote controller; supports electric, manual, and near-control modes for different scenarios
Automatic Basket Leveling: Keeps the platform level at all angles for operator safety
Upper/Lower Operation Interlock: Prevents simultaneous operation from both control stations
Auto-Leveling Outriggers: One-key automatic leveling with tilt angle sensors; front V and rear V hydraulic supports with independent adjustment for uneven ground
Platform Limiting Function: Built-in limit protection ensures safe operation
Emergency Stop & Emergency Pump: For unexpected situations
6. Lightweight Blue-Plate Design For Urban Access
With a gross vehicle weight of just 4,495 kg and curb weight of 4,365 kg, these vehicles qualify for blue-plate registration, allowing operation with a standard driver's license in urban areas and narrow streets. The compact dimensions (5,995×2,080×3,100 mm) enable maneuverability in confined work sites.
7. Durable Construction For Harsh Environments
- Fiberglass Basket: High insulation performance for operator safety during electrical work
- Full Powder Coating: Corrosion-resistant and weatherproof for long service life
- High-Strength Steel Boom: Q345 carbon steel construction with strong deformation resistance
