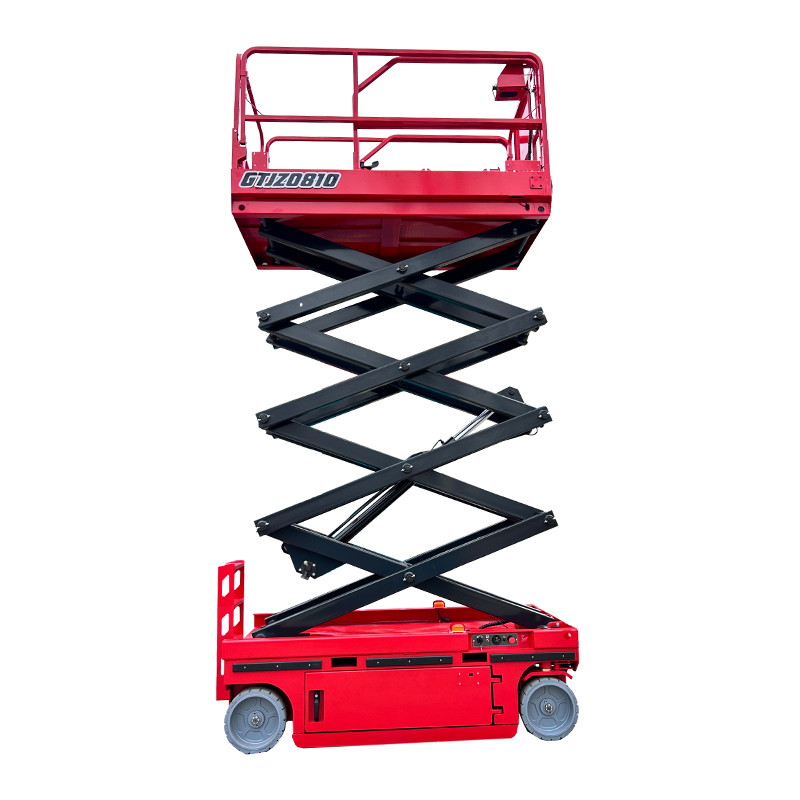

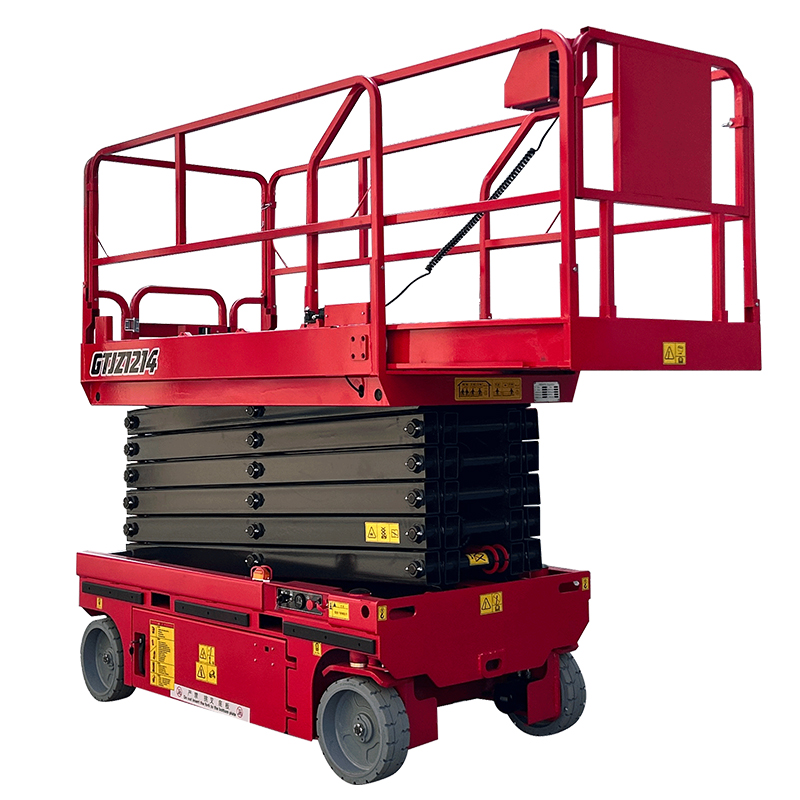

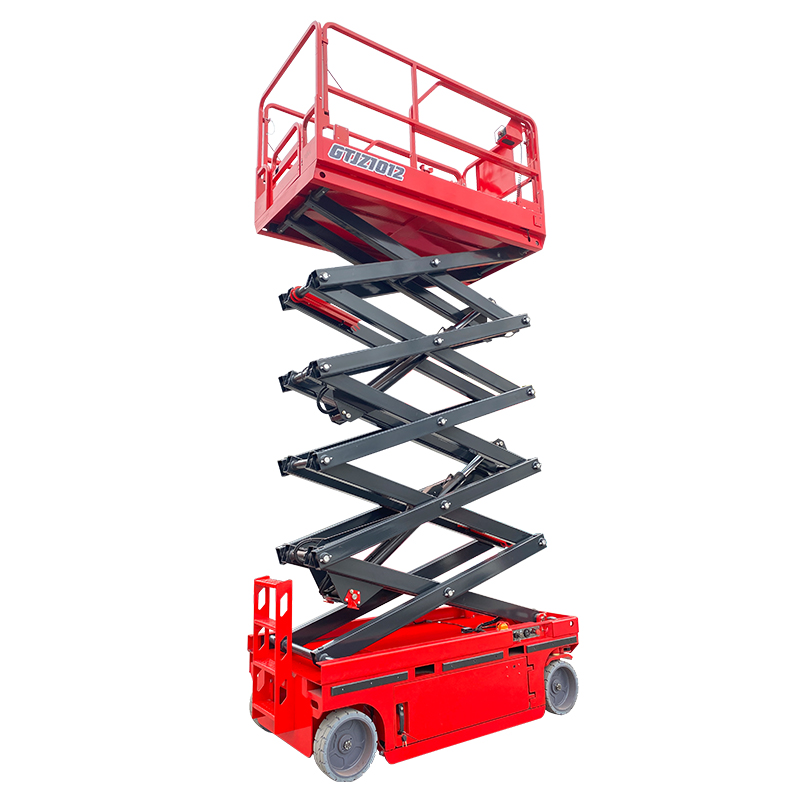

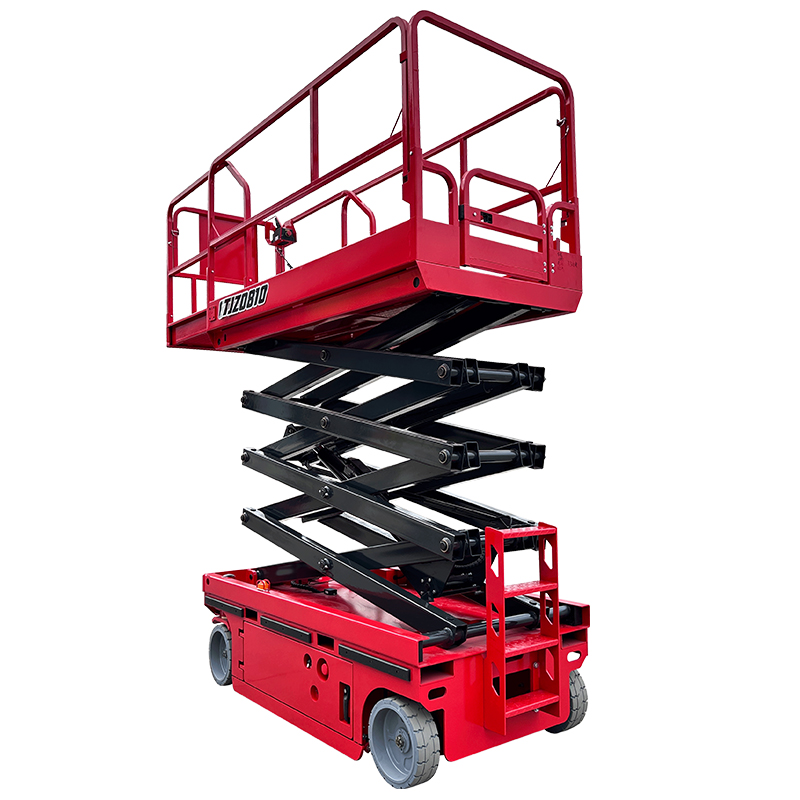

Scissor Lift with One‑Key Leveling – Professional Aerial Work Platform
The scissor lift is a widely used aerial work platform designed for efficient, safe, and versatile operations. With its extra‑large working platform and high load capacity, it provides a generous working envelope that accommodates multiple workers simultaneously. Whether for facility maintenance, construction, or industrial installation, this lift delivers reliable performance. Models are available with one‑key leveling, allowing instant platform leveling on uneven ground – enhancing both safety and productivity.
1. Hidden Grease Nipples for Extended Service Life
Traditional external grease nipples are prone to being knocked off or damaged. Our scissor lift features recessed / hidden grease nipples, effectively preventing accidental breakage and keeping lubrication points clean and protected.
| Model | MPGTJZ0608 | MPGTJZ0810 | MPGTJZ1012 | MPGTJZ1214 | MPGTJZ1416 |
| Size | |||||
| Maximum working height | 8m | 10m | 12m | 14m | 15.8m |
| Maximum platform eight | 6m | 8m | 10m | 12m | 13.8m |
| Overallength | 2.39m | 2.39m | 2.39m | 2.39m | 2.79m |
| Oveall width | 1.16m | 1.16m | 1.16m | 1.16m | 1.25m |
| Owerall height lunfokdedfencel | 2.21m | 2.34m | 2.47m | 2.60 m | 2.60m |
| Oweral height ffoldedfence) | 1.7m | 1.82m | 1.94m | 2.06m | 2.1m |
| ostfomrerim egtxitn | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.27*1.13m | 2.63*1.13m |
| Platfiorm extension size | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Wheelbase | 1.86m | 1.86m | 1.86m | 1.86m | 2.23m |
| Ground cearance | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm | 106mm/29mm |
| 性能Performance | |||||
| RATED LOAD | 450 kg | 450kg | 320kg | 320kg | 230kg |
| Extendedplatfom rated load | 113kg | 113 kg | 113kg | 113 kg | 113kg |
| Mactie trelse fetratedsate | 3.5km/h | 3.5km/h | 3.5 km/h | 3.5km/h | 3.5km/h |
| IMachine tranwelspeed (lifting state) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Rise/fall time | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min | 4-6m/min |
| Gradeability | 25% | 25% | 25% | 25% | 25% |
| 1.5-3° | 1.5-3° | 1.5-3° | 1.5-3° | 1.5-3° | |
| Waimumalhwdbenghrok atera | |||||
| Drive | FRONT WHELDRNE | FRONT WHEEL DRTME | FRONT WHEELDRME | FRONTWHELDRME | FRONTWHEL DRNME |
| Tire | Seamkess solidtire | Seamkess solidtire | Seamkess solidtire | Seamkess solidtire | Seamkess solidtire |
| Tire Size | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm | φ381*127mm |
| Power | |||||
| Power source | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/200AH | 4*6V/240AH |
| Lifting motor | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| 重量weight | |||||
| Whole machine weight | 2100 kg | 2250kg | 2550kg | 2950kg | 3300kg |
2. Truss‑Type Beam Lifting Mechanism
The lifting mechanism adopts a truss beam structure, which ensures even load distribution across the entire scissor assembly. This design reduces localized stress, improves lifting stability, and extends the service life of the mechanism.
3. Comprehensive Safety Protection
Overload protection device – prevents operation when the platform exceeds rated capacity.
Anti‑rupture safety valve – immediately locks the hydraulic circuit in case of hose burst, preventing sudden descent.
Manual descent handle – mounted on the platform side for emergency lowering during power failure.
Protective shield at base – a heavy‑duty safety cover protects key components (motor, contactors, electrical system) from impact, dust, and debris.
Maintenance support structure – a mechanical locking arm securely holds the platform during inspection, repair, or cleaning, ensuring safe access for technicians and preventing accidental lowering.
4. One‑Key Leveling Function (Standard or Optional)
With the one‑key leveling system, the platform automatically adjusts to a horizontal position on slightly uneven terrain. This feature improves worker comfort and operational safety, especially on construction sites or outdoor surfaces.
5. Multiple Power Options
Choose the power source that fits your site conditions:
380V / 220V AC – for fixed or indoor applications
DC (battery) – for cordless, quiet, emission‑free operation
Internal combustion engine – for rugged outdoor use with extended runtime
6. Optional Extendable Platform
When the standard platform length is insufficient, an extendable platform can be added. It slides out manually or hydraulically to reach beyond the base platform, eliminating the need to reposition the lift – significantly improving work efficiency for tasks like duct installation or façade cleaning.
Why Choose This Scissor Lift?
| Advantage | Benefit |
|---|---|
| Larger platform + high capacity | Supports multiple workers and heavy tools, reducing trips. |
| One‑key leveling | Saves setup time and improves stability on uneven ground. |
| Hidden grease nipples & truss structure | Lowers maintenance frequency and extends equipment life. |
| Emergency manual descent | Guarantees safe return to ground even during power outage. |
| Protective base shield + maintenance support | Protects components and ensures technician safety during repairs. |
| Flexible power options + extendable deck | Adapts to diverse job sites and maximises reach with minimal repositioning. |
Applications
Construction – installing ceilings, HVAC ducts, piping, and lighting.
Industrial maintenance – servicing overhead cranes, conveyors, and electrical busways.
Facility management – cleaning high windows, replacing bulbs, painting walls.
Warehousing – accessing high racks, performing inventory checks.
Outdoor installation – billboard mounting, tree trimming, stadium maintenance.
Technical Highlights (Typical)
| Parameter | Value |
|---|---|
| Platform height | 6 m – 14 m (customizable upon request) |
| Load capacity | 300 kg – 500 kg (depending on model) |
| Leveling function | One‑key automatic leveling (on uneven terrain ≤3°) |
| Power options | 380V / 220V AC / DC battery / Diesel or petrol engine |
| Emergency descent | Manual handle at platform side |
| Protection | Overload sensor, burst‑proof valve, base shielding |
Conclusion
Our scissor lift combines an ultra‑large working platform, robust load capacity, and innovative design features – hidden grease nipples, truss beam lifting, and one‑key leveling – to deliver a safer, more productive aerial work solution. With multiple power choices and an optional extendable platform, it easily adapts to your specific job site requirements. Contact us today to find the right configuration for your operation.
